LED Combination Masthead/All-Round Light

Certified for use on sail and power driven vessels under 20 meters (65.6 feet) in both USA and European Markets

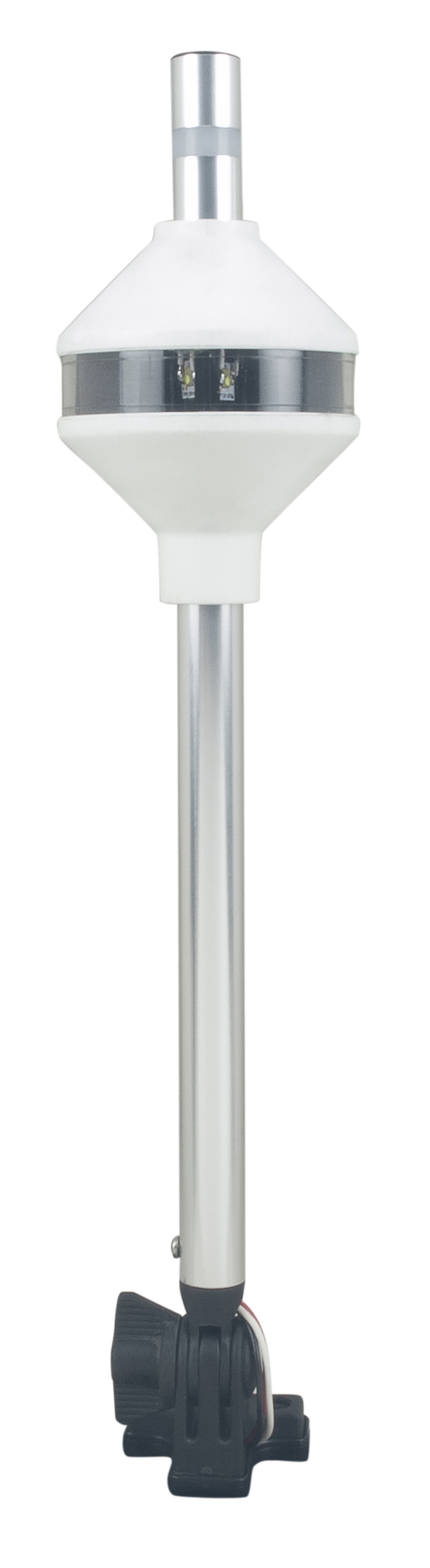

Available Finishes

Product Description

LED Technology

C-5 Compliant

New High-Tech design with self contained LED modules
Black or White Polymer and 3/4" anodized aluminum tube
Quality components designed for harsh marine environments
Meets Global Specs for: ABYC C-5, NMMA Type Accepted, EN/ISO 19009:2015, ABYC A-16 (2016), 1972 COLREGS, RCD 2013/53/EU, USCG 33 CFR - 3nm
NMMA Type Accepted Number: 2619845

Technical Information

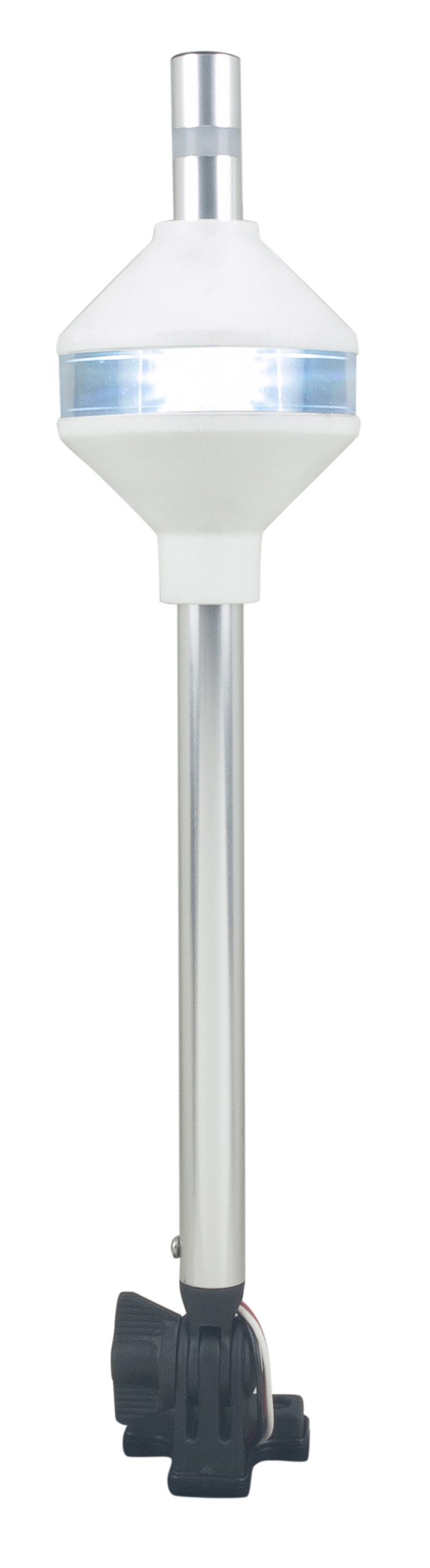

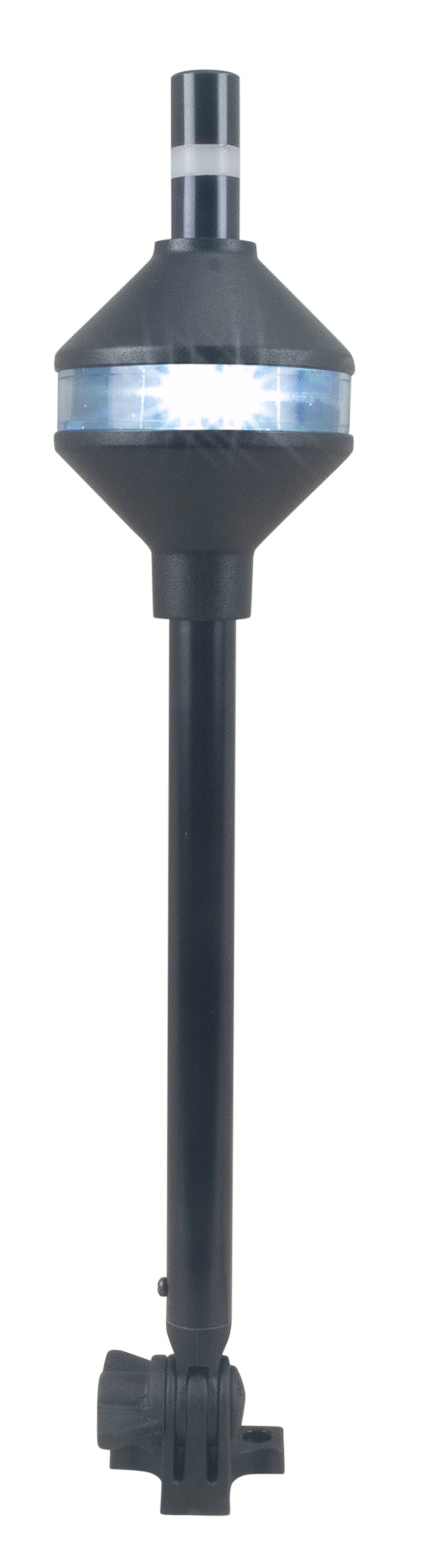

Masthead

Voltage: 12 Volt LED

Wattage: 2.2 watts

Amperage: 0.20 amps

Visibility: 3nm

Visibility Arc: 225°

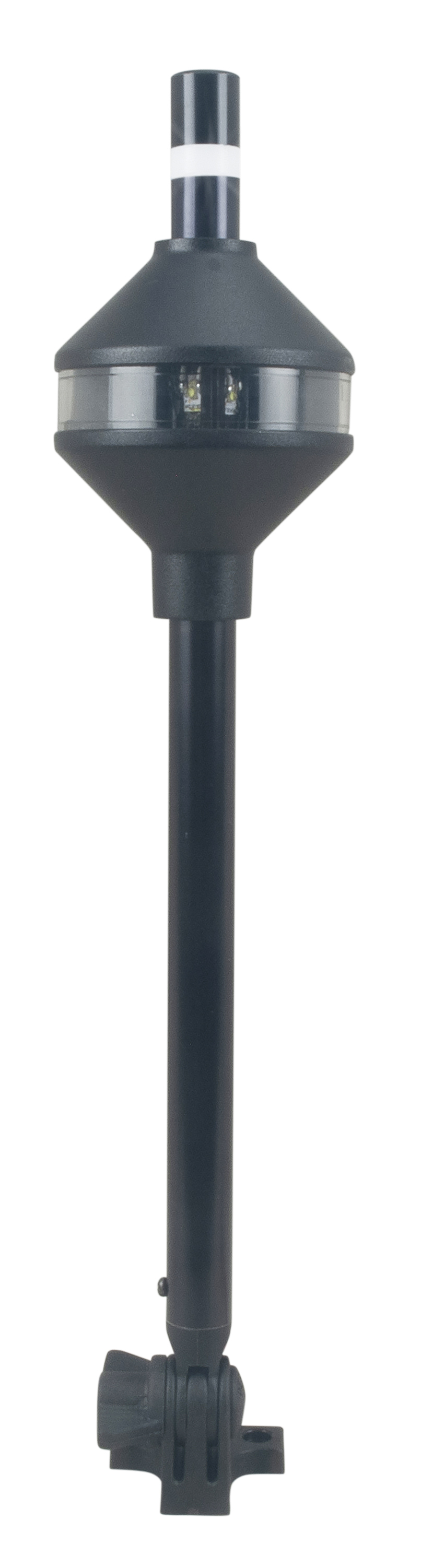

All-Round Light

Voltage: 12 Volt LED

Wattage: 1.28 watts

Amperage: 0.10 amps

Visibility: 2nm

Visibility Arc: 360°

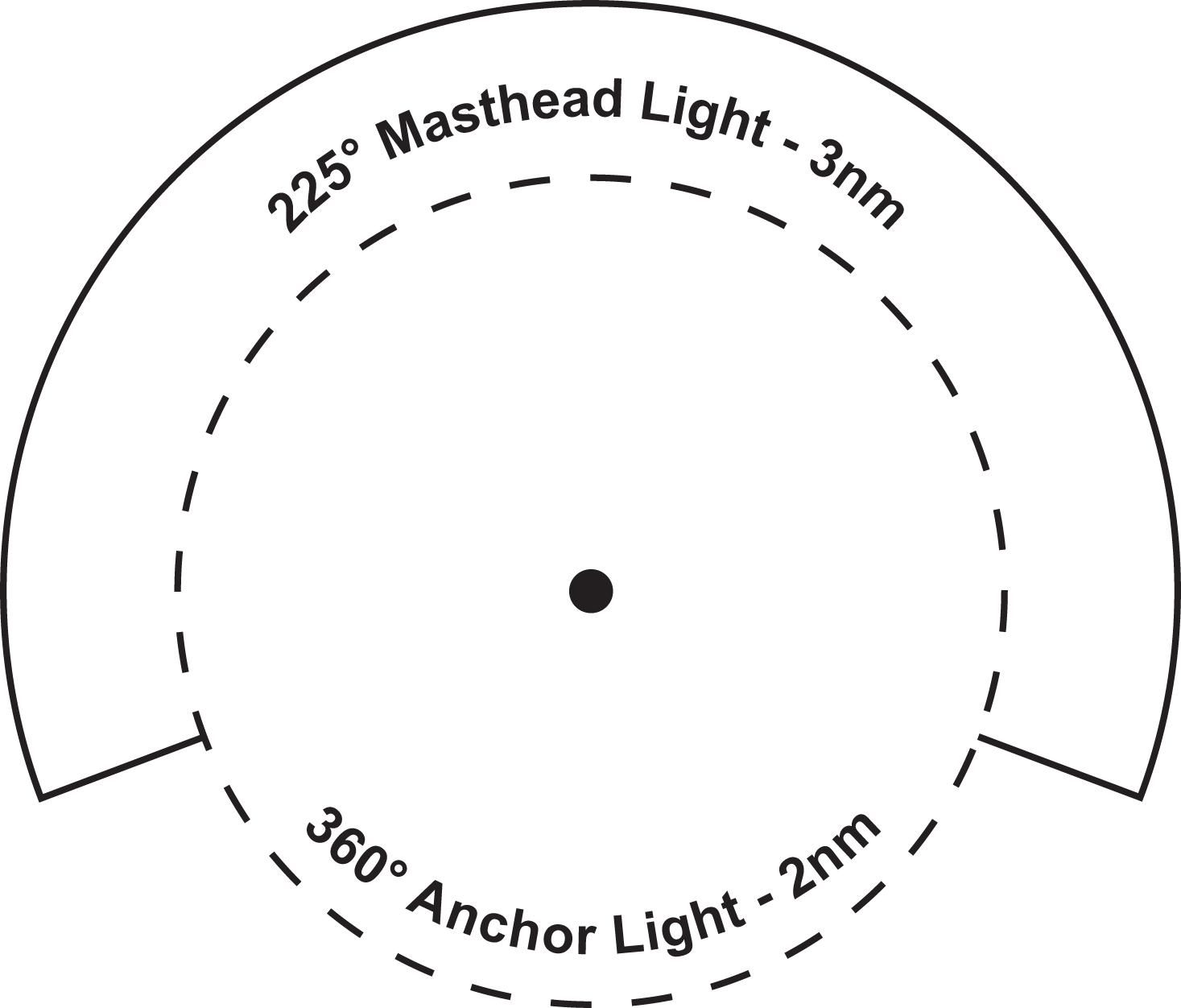

Visibility Arcs

Round Fixed Mount and Fold Down Pole Light Mounting Base Options

Either base configuration may be used when mounting on a flat surface depending on your selected mounting location. Use the adapters supplied when mounting on "V" type surfaces such as windshield frames or crossbars. Note: When mounting on "V" type surfaces such as windshields, the light must be tall enough so that it does not impede the night vision of the operator. Horizontal or vertical mounts refer to the folding direction of the pole relative to the attachment plane of the base mount and not the plane of the surface being mounted on.

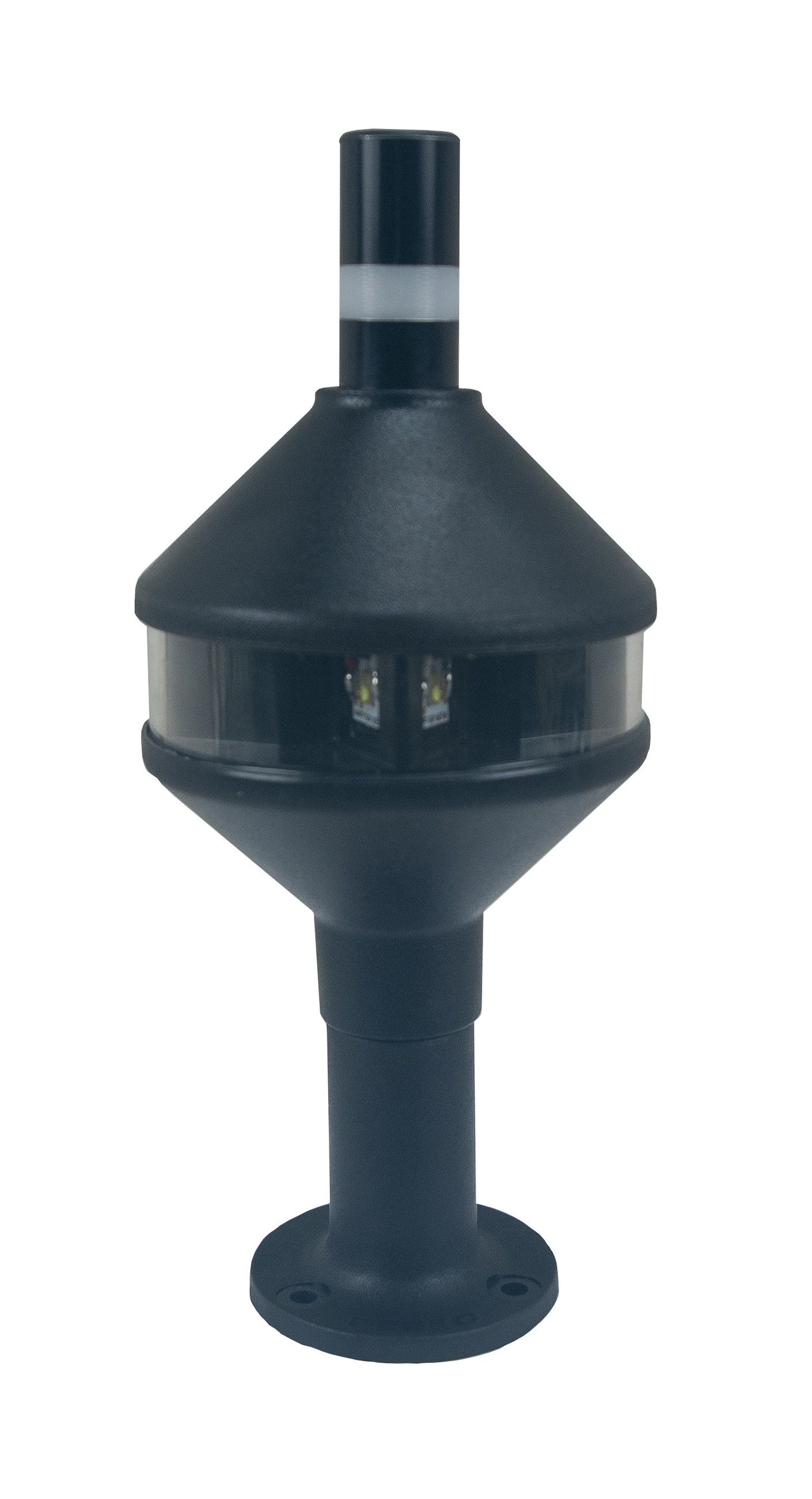

Round Fixed Mount Base - For horizontal fixed mounting surfaces where folding the light is not necessary.

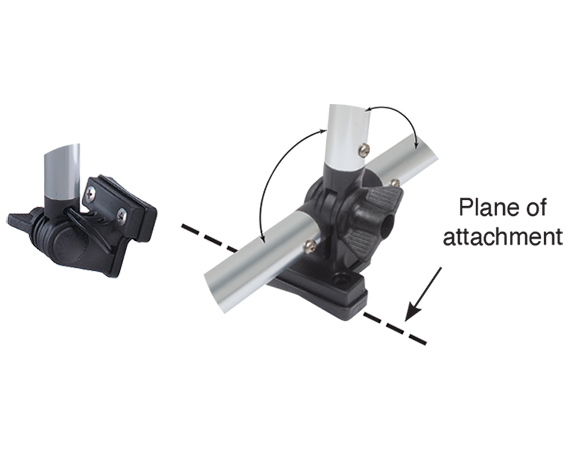

Horizontal Mount Bases - Folds down 90° in either direction perpendicular to the plane of attachment plate of the mount.

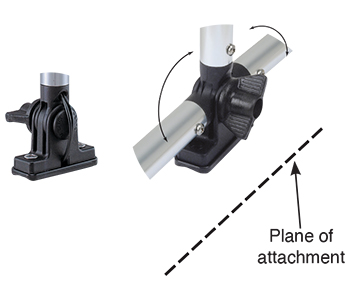

Vertical Mount Bases - Folds down 90° in either direction along the plane of attachment plate of the mount.

Ordering Information

Mount Type	Height Overall	Base Dimensions	Black OEM Bulk Pkg.	White OEM Bulk Pkg.

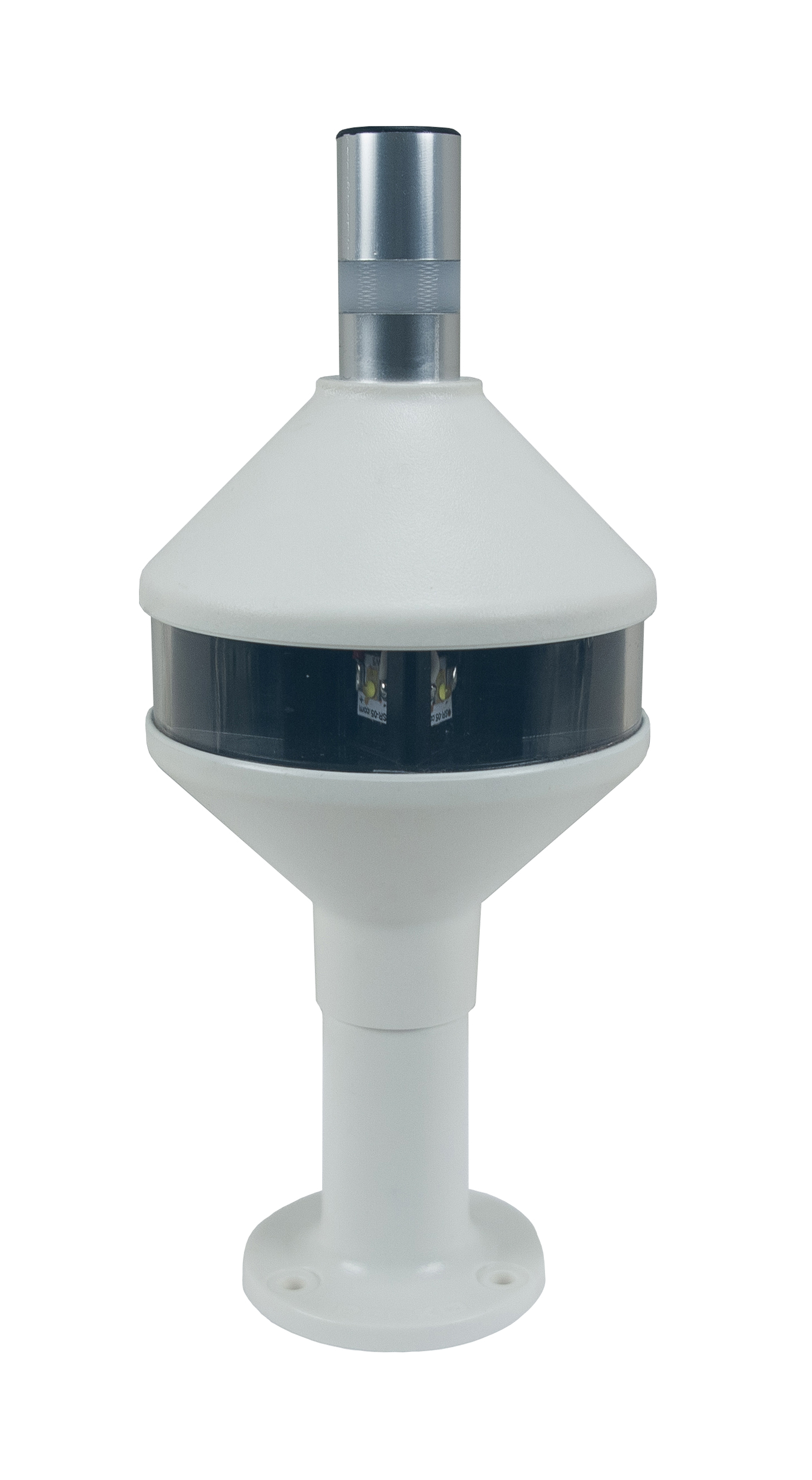

Round Fixed Mount	7-1/2"	2-1/8"	1686R01BLK	1686R01WHT

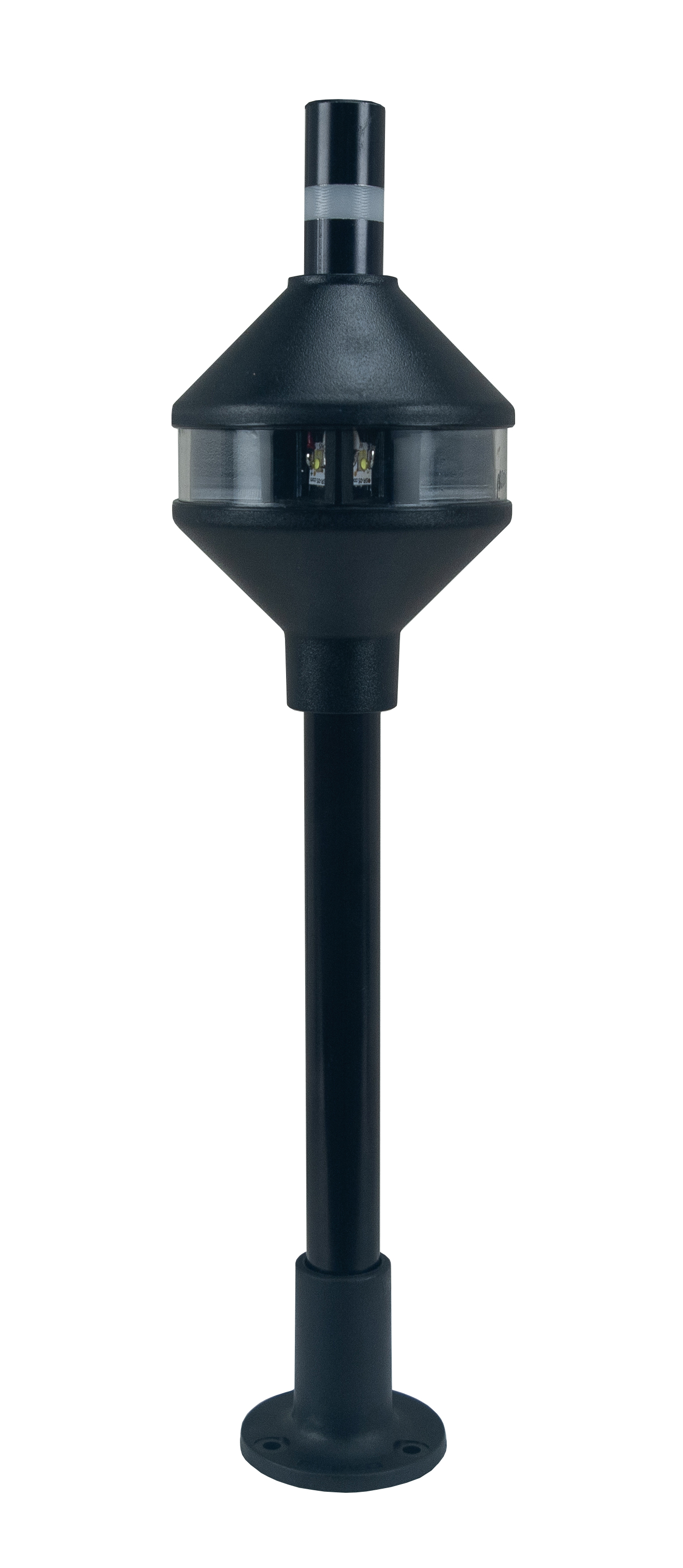

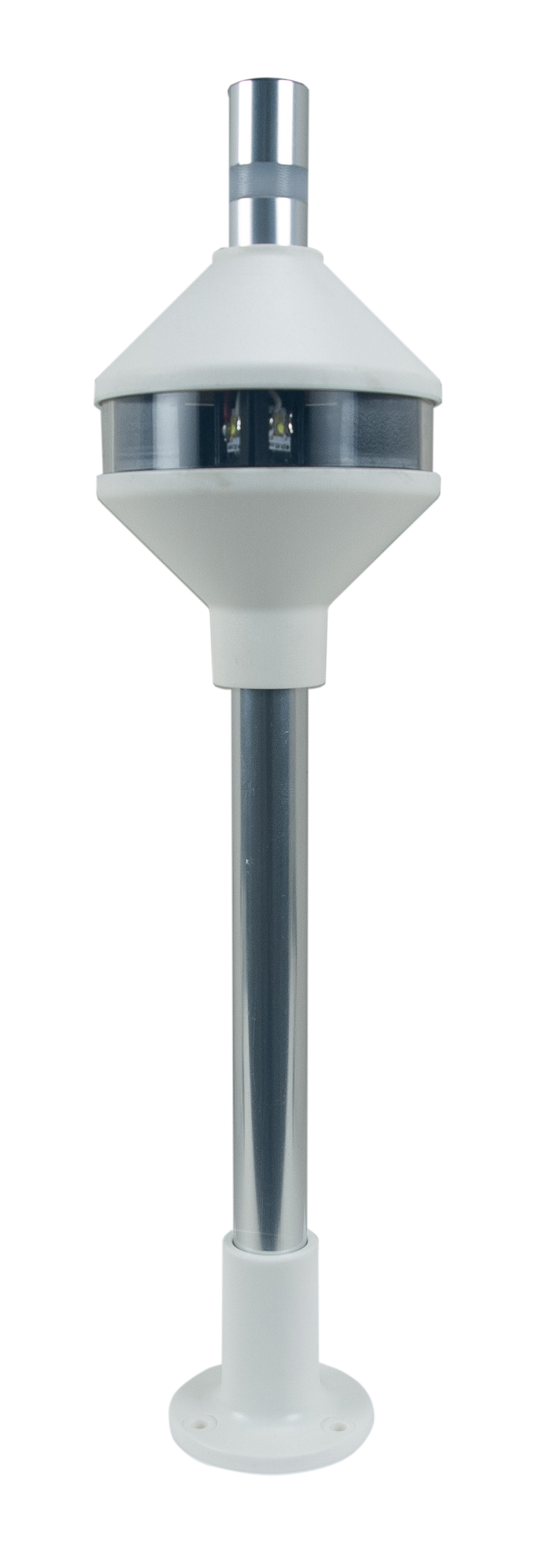

Round Fixed Mount	13-1/2"	2-1/8"	1686R02BLK	1686R02WHT
Horizontal Mount	16-3/4"	2" x 1-1/2"	1686H00BLK	1686H00WHT

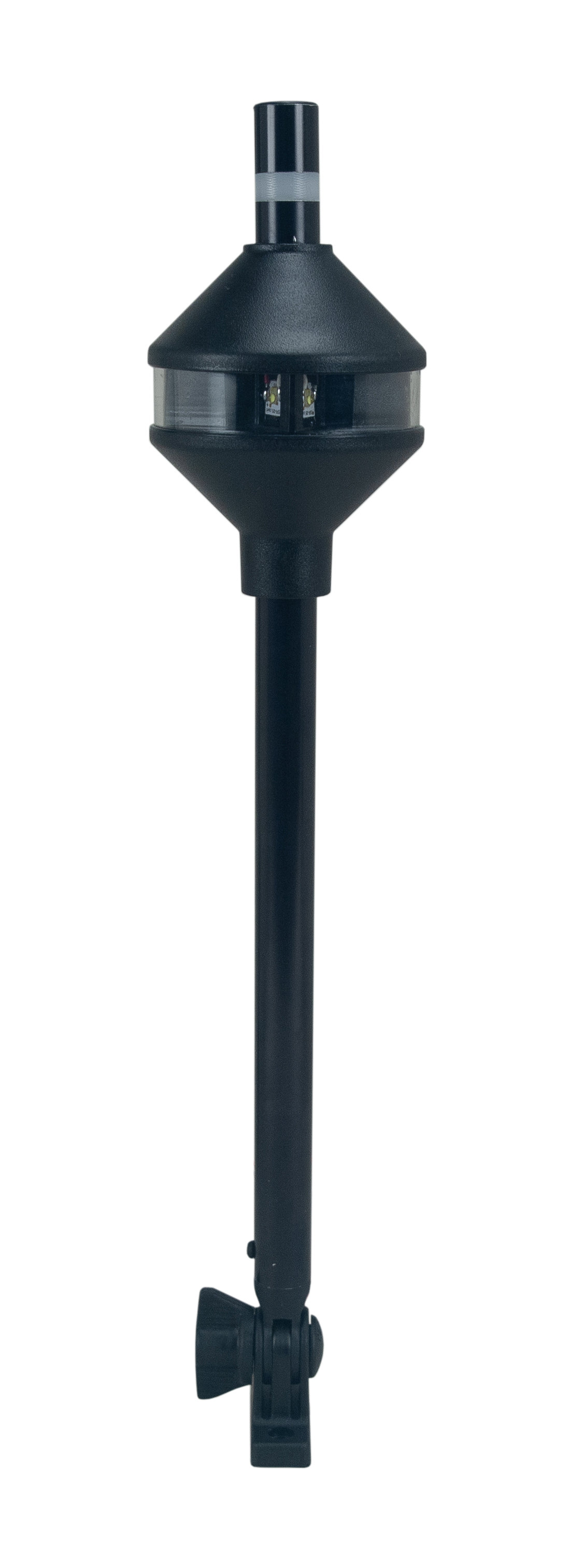

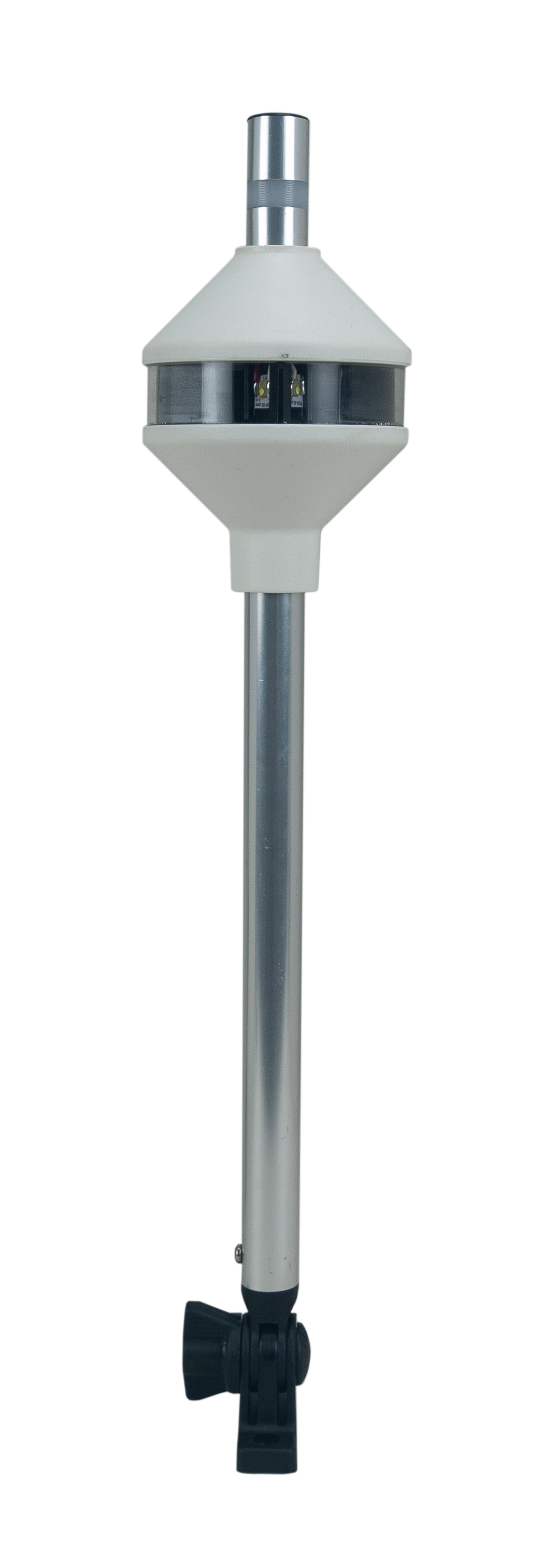

Vertical Mount	16-3/4"	2-1/4" x 5/8"	1686V00BLK	1686V00WHT
