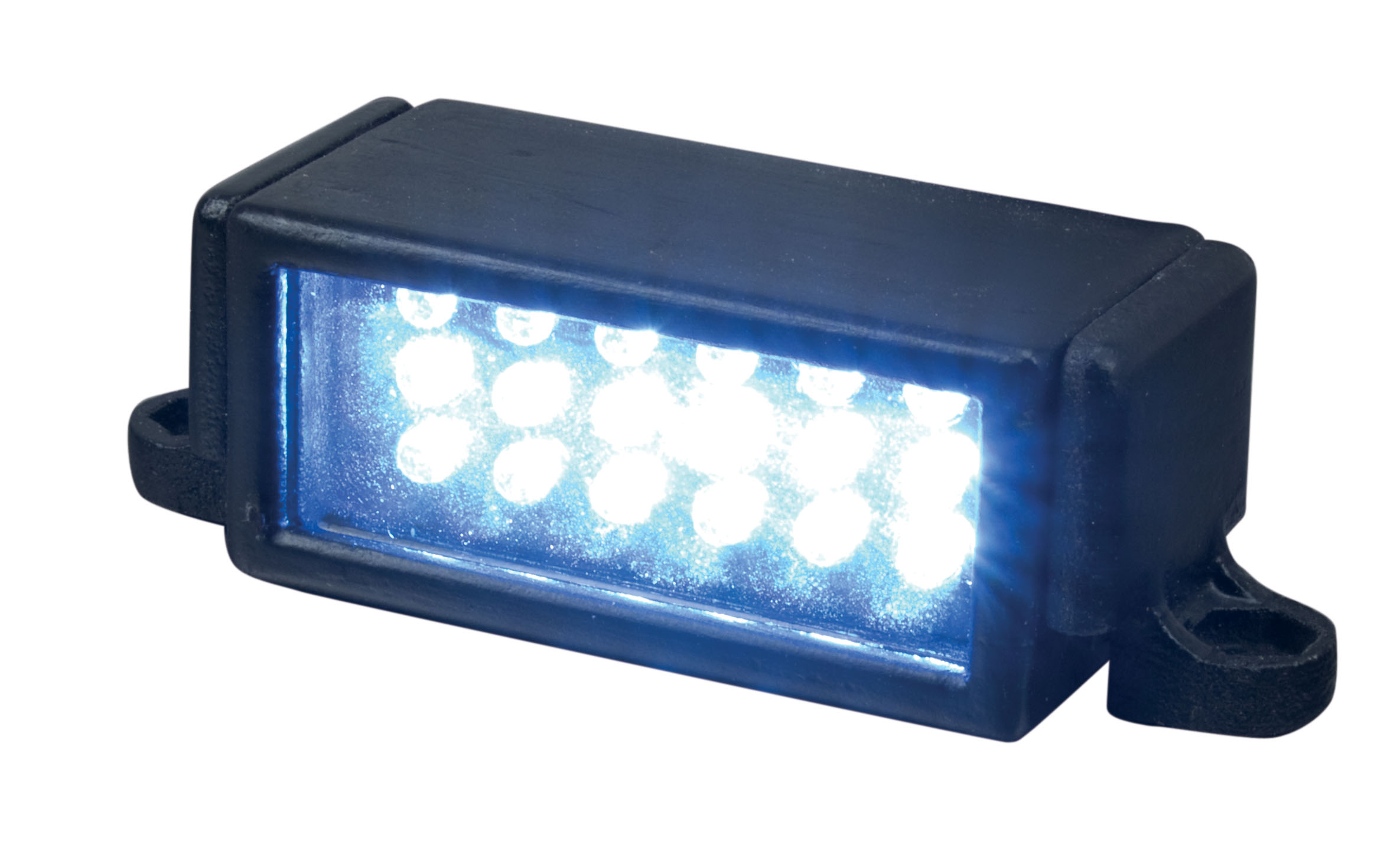

L.E.D. Surface Mount Trim Tab Underwater Light [Fig. No. 0178]


Product Description

    • Non-Corrosive Molded Black Polymer Housing
    • White or Blue L.E.D.’s
    • 8 Feet of 18 AWG Marine Grade Electrical Cable

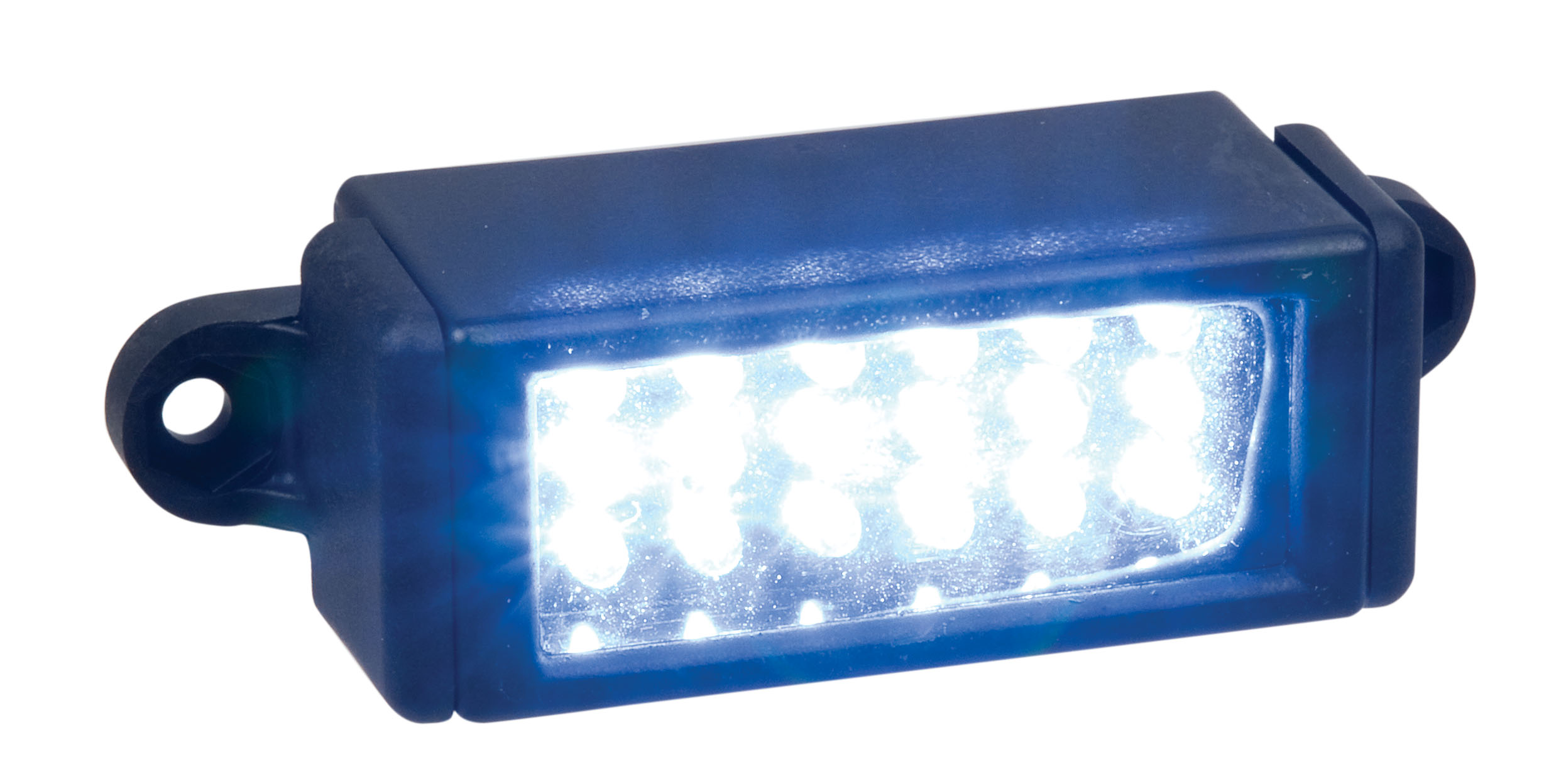

    • Removable brackets can be positioned for horizontal or vertical mounting applications

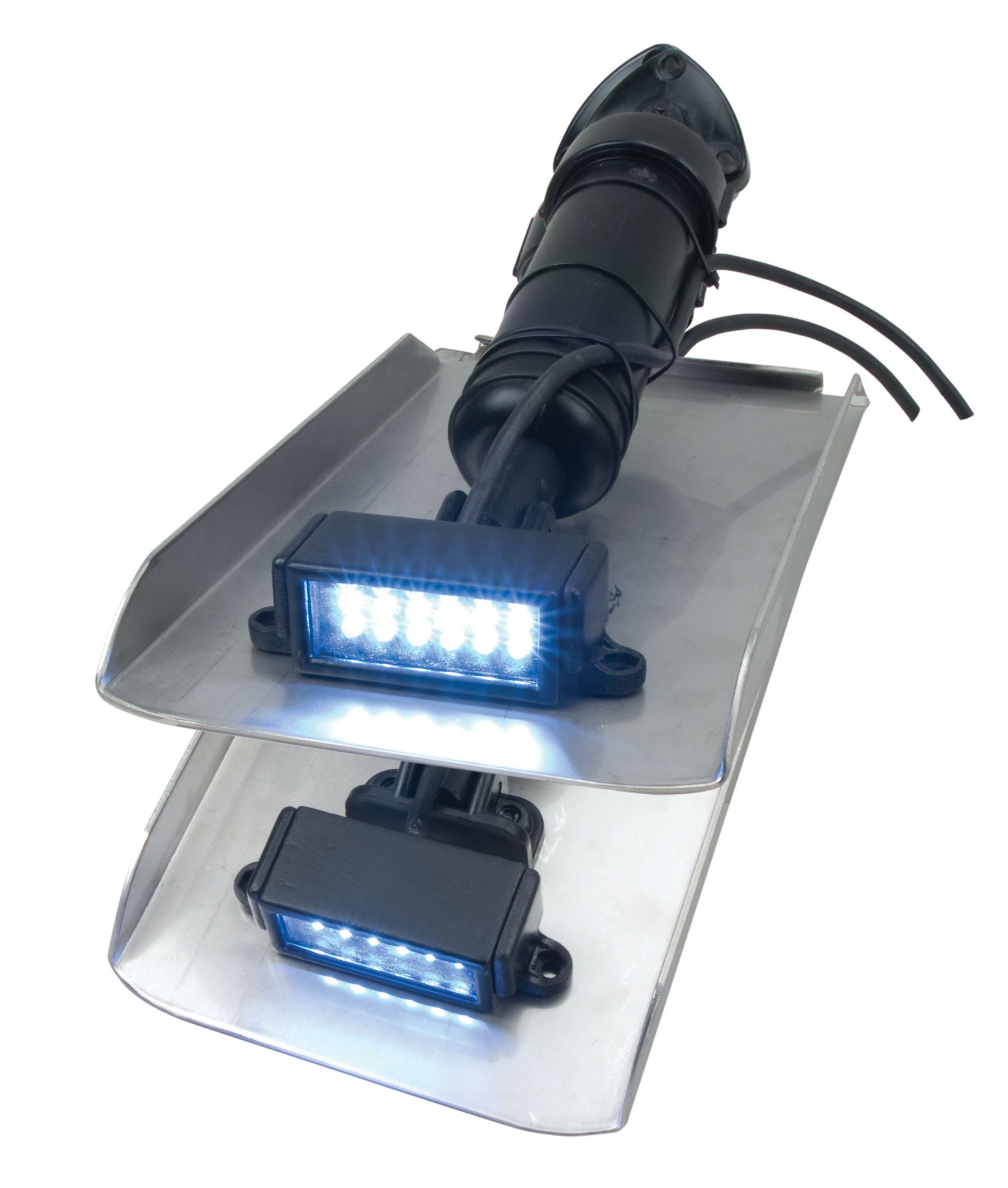

    • Trim Tab mounting allows for adjustment of the beam as the tab moves up and down

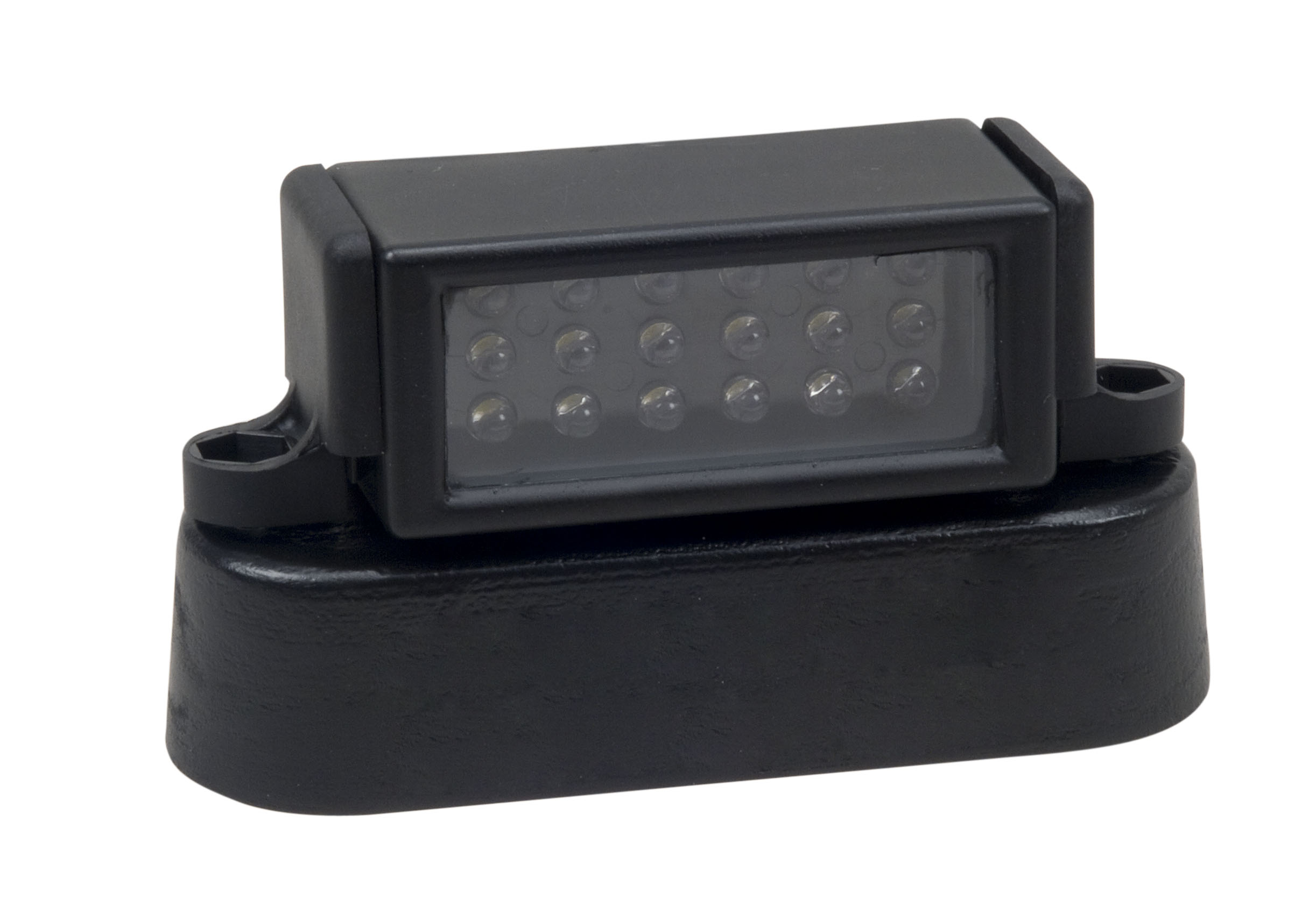

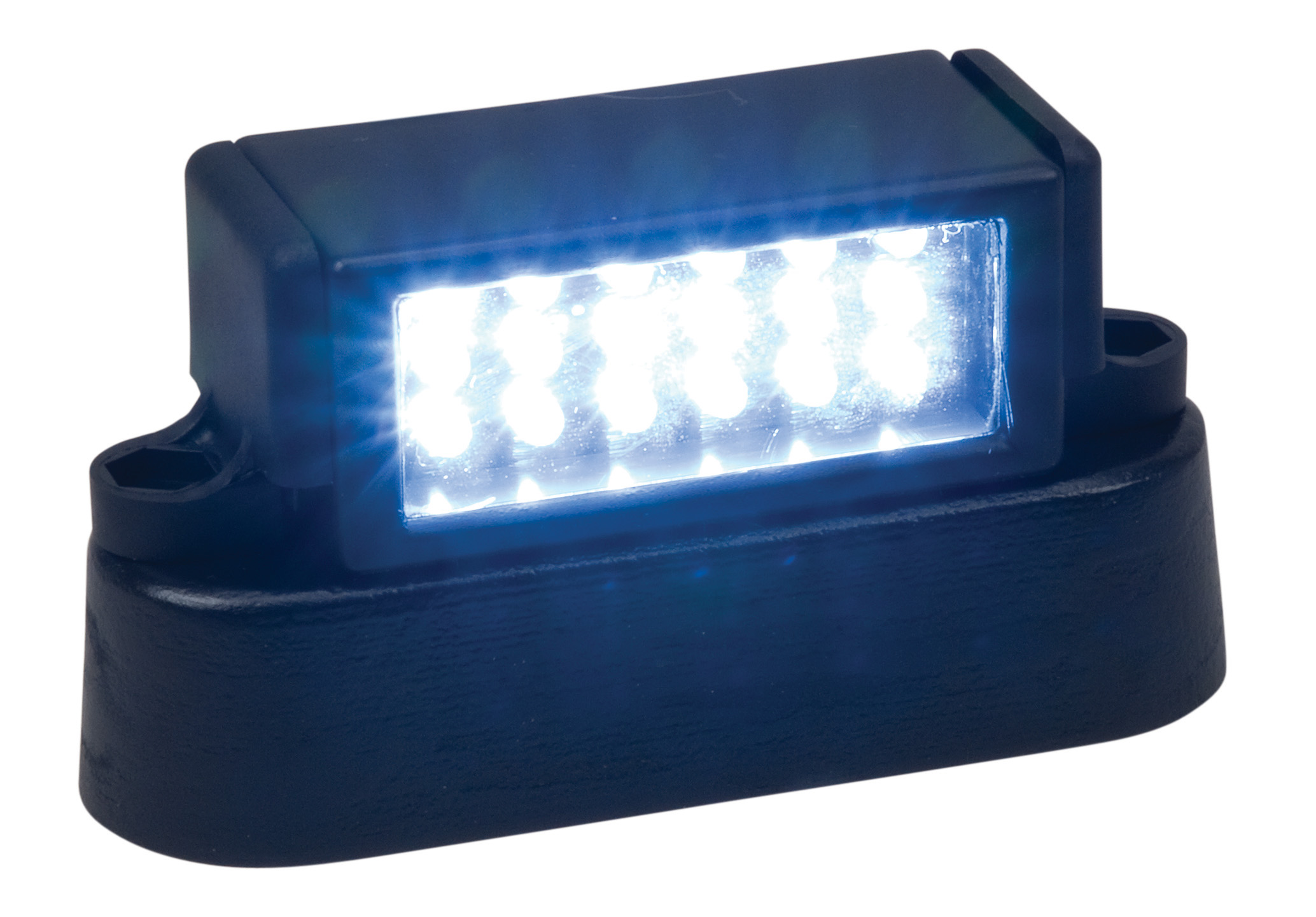

    • Mounting riser included in DP Package for use with lipped trim tabs
    • L.E.D.’s provide Longer Life, Less Heat and Use 1/10th the Energy of Standard Lights

Technical Information

  • 12 Volt, 7.0W
  • 75 Lumens, 324 C.P. - White
  • 27 Lumens, 207 C.P. - Blue
  • L.E.D. Beam: 15°
  • Lab Rated L.E.D. Life: 50,000 Hrs.
  • Dimensions: 4-1/8” x 1-5/16” x 1-1/4”
  • Bolt Size: 8/32 P.H.

Ordering Information

Description L.E.D.
Color		 Dealer Pkg.
1 Pkg. 		Std. Pkg. - 1 Pc.
OEM Bulk Pkg. 10 Pcs. 		Ship Wt.
Carton Lbs.
DP/STD/OEM Bulk
Trim Tab Mount 1-Pk White 0178DP1WHT 0178001WHT 0.7/0.7/5.0
Trim Tab Mount 2-Pk White 0178DP2WHT ---------- 1.8/---/---
Trim Tab Mount 1-Pk Blue 0178DP1BLU 0178001BLU 0.7/0.7/5.0
Trim Tab Mount 2-Pk Blue 0178DP2BLU ---------- 1.8/---/---

Spare Parts

No spare parts are available for this product

Certifications

No certifications are associated with this product
