Figure No: 0541 - Legacy Product

Category: Fuel System Components

Product Instructions CE Certificate

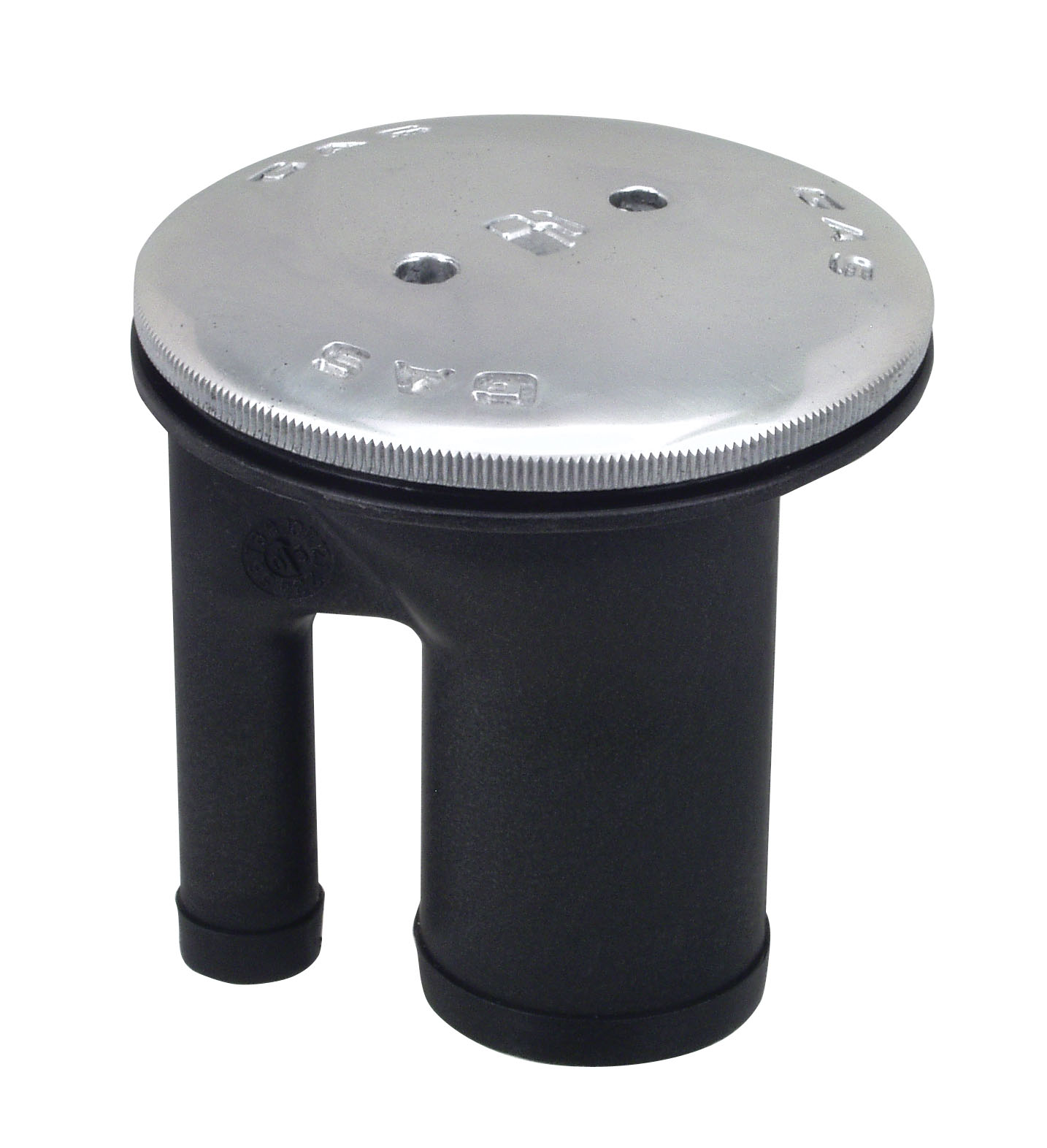

Straight Neck Vented Fill for 1-1/2" Hose (Marinium) Straight Neck Vented Fill for 1-1/2" Hose (Marinium) [Fig. No. 0541]

Note: This is a Perko Legacy product.

Perko Legacy products are no longer in regular production. Please contact our sales department for availability.

Product Description
    • Marinium Alloy Cap and Black Polymer Body
    • Integral Tank Vent with Flame Arrestor and Anti Surge Valve
    • Heavy Duty Stainless Steel Bead Chain
    • Straight Neck
Technical Information
  • For Hose Size: 1-1/2"
  • For Vent Hose: 5/8"
  • O.D. Flange: 3-3/8"
  • Mounting Hole Diameter: 2-1/8"
  • Neck Length: 2-7/16"
  • Screw Size: #8
Ordering Information
Marked For: Dealer Pkg. 5 Pcs. OEM Bulk Pkg. 25 Pcs. Ship Wt. Carton Lbs. DP/OEM Bulk
Gas 0541DPGMAR* 0541G00MAR* 3.3/10.9
Diesel 0541DPDMAR 0541D00MAR 3.1/10.5
Water 0541DPWMAR 0541W00MAR 3.2/10.6
Instructions & Resources
Product Instructions Fig. 0541 Installation Instructions
CE Certificate Fig. 0541 CE Certificate
Product Notes
*NOTE: These items Meet the Requirements of U.S.C.G. Safety Standards, January 31, 1977, for Gasoline Fuel Systems, 33 CFR 183.
Spare Parts

Gas Cap, O-Ring & Retainer: 0540DPG99A

Diesel Cap, O-Ring & Retainer: 0540DPD99A

Water Cap, O-Ring & Retainer: 0540DPW99A

Note: Consider the use of the Mounting Ring (fig. 0540DPRBLK) below for all installations.

Certifications

CE Certified
