Round Flange Flush Hatch Dog

Note: This is a Perko® Legacy product.

We no longer have any availability for this product.

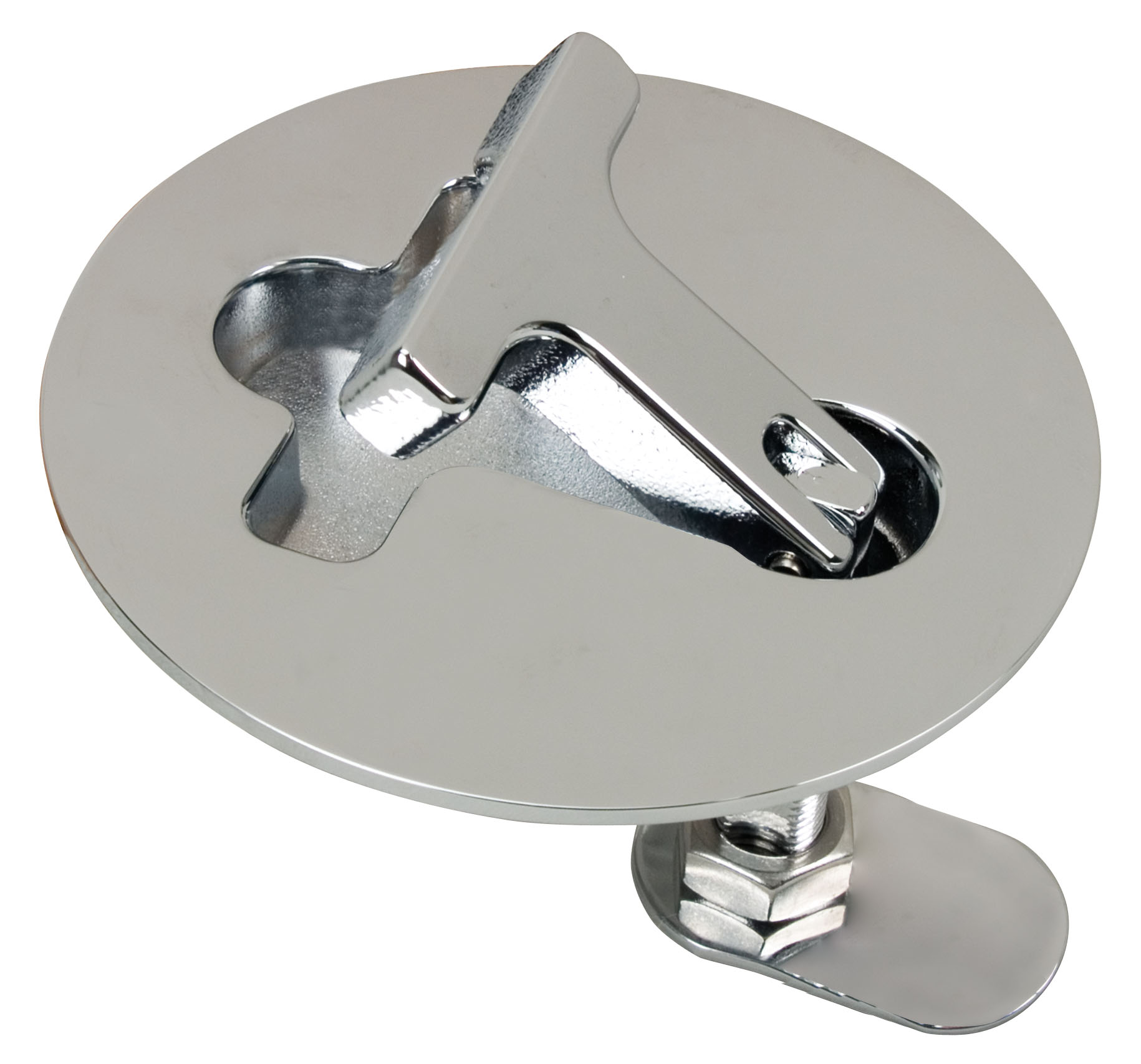

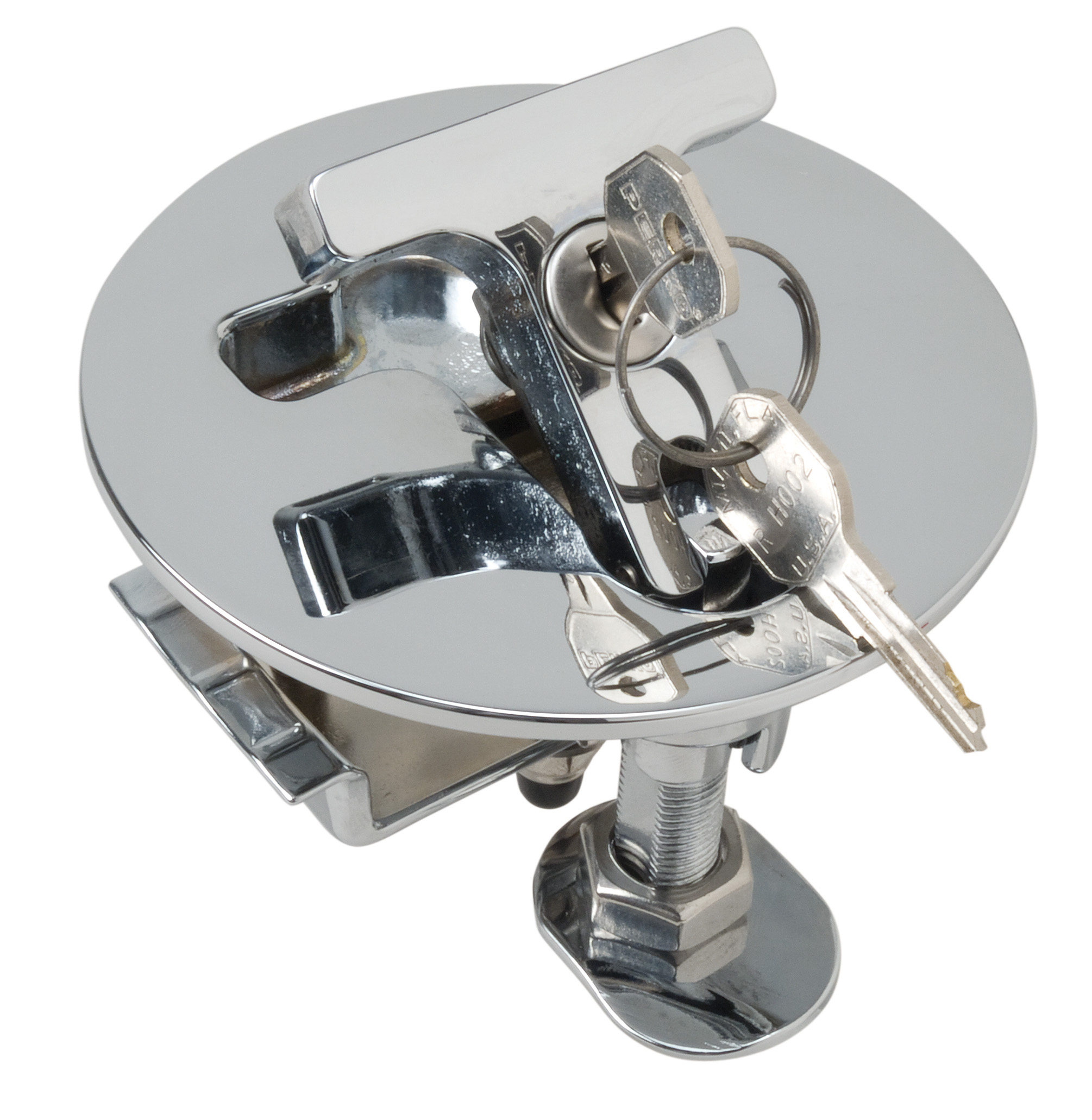

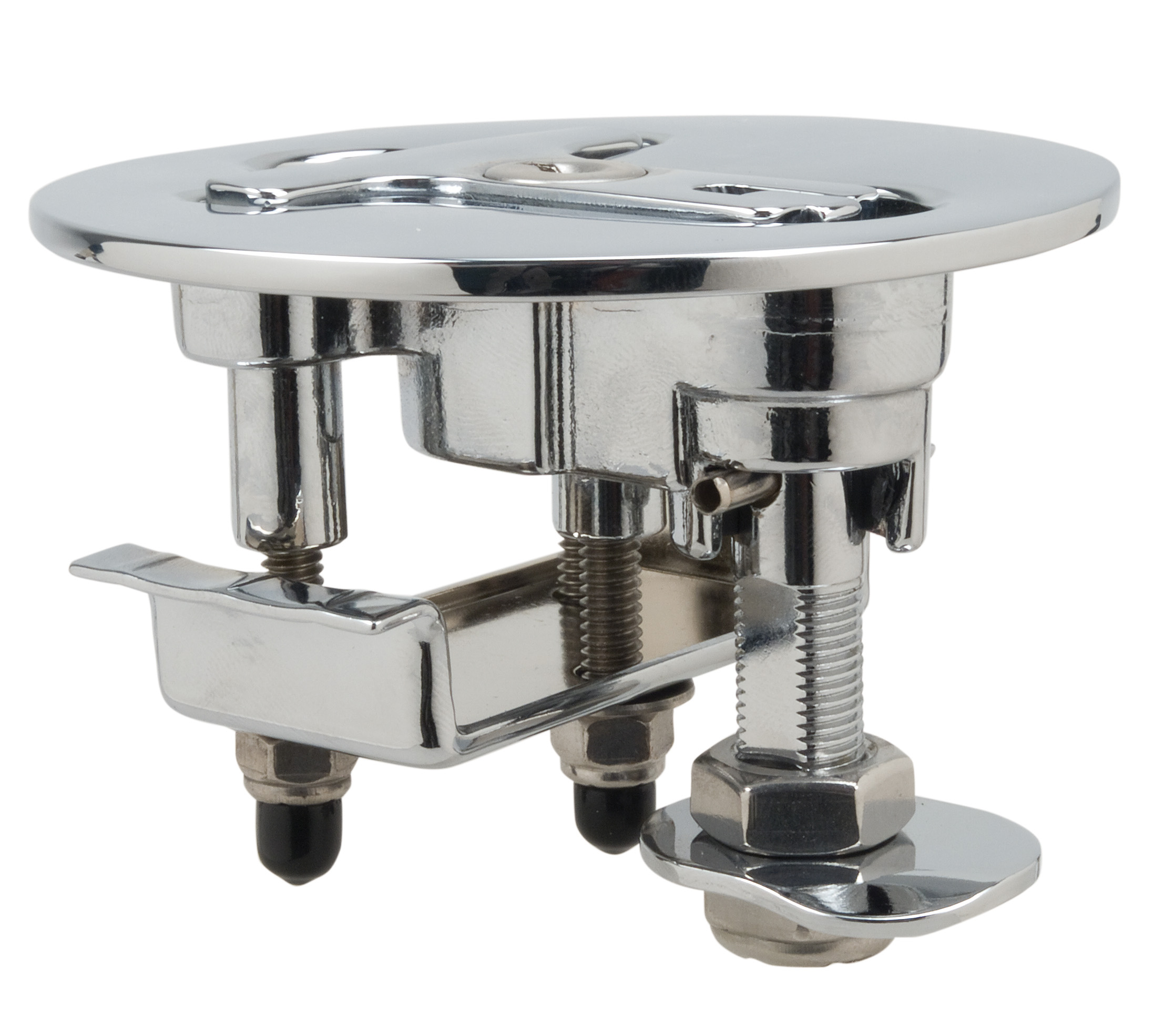

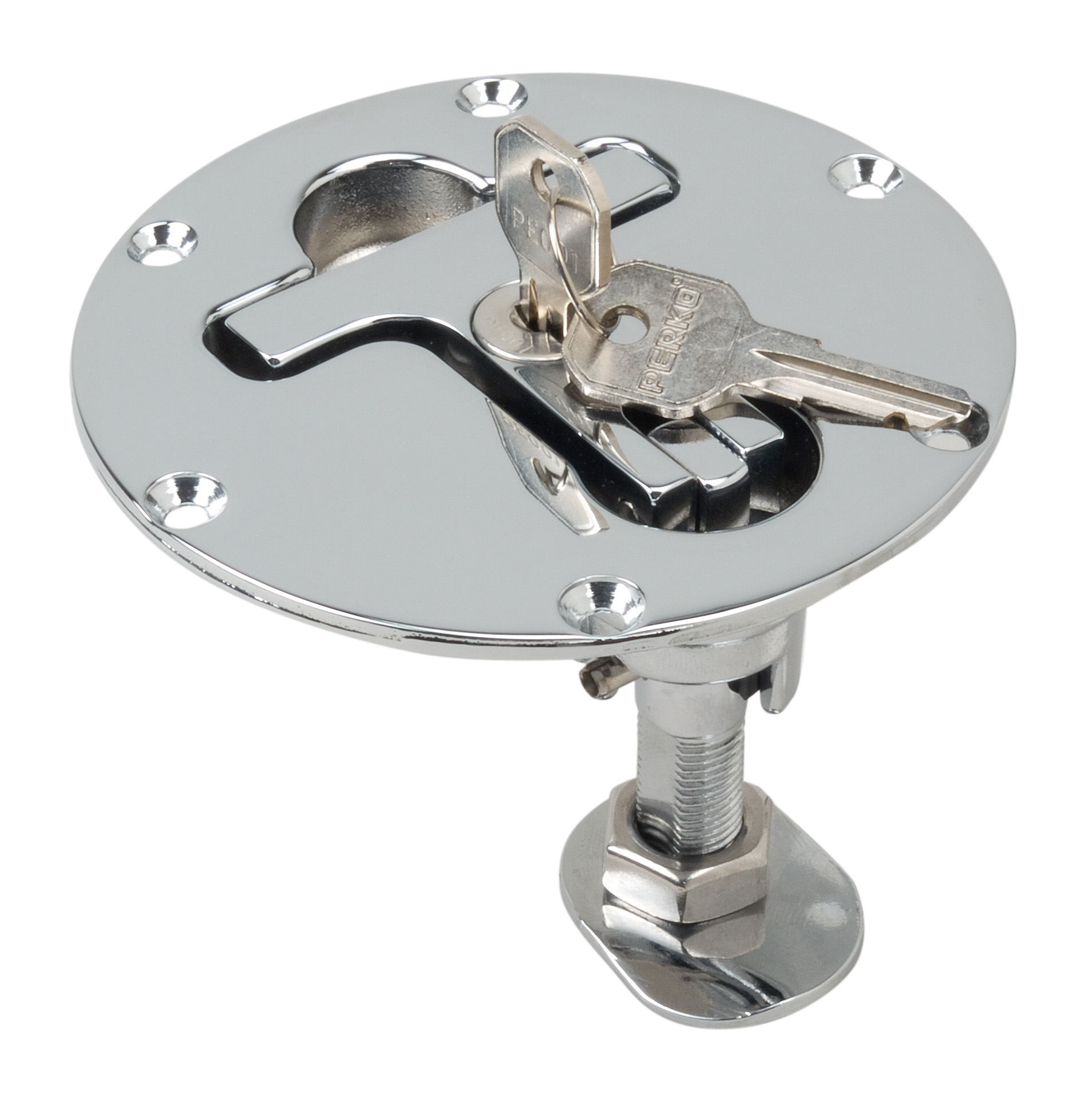

Figure No. 0778 - Round Flange Flush Hatch Dog
Figure No. 0778 - Round Flange Flush Hatch Dog
Figure No. 0778 - Round Flange Flush Hatch Dog
Figure No. 0778 - Round Flange Flush Hatch Dog
Figure No. 0778 - Round Flange Flush Hatch Dog
Figure No. 0778 - Round Flange Flush Hatch Dog
Figure No. 0778 - Round Flange Flush Hatch Dog
Figure No. 0778 - Round Flange Flush Hatch Dog
Product Description
Perko Legacy Product
    • Chrome Plated Bronze
    • 2 Options: Flange with Visible Mounting Holes or Smooth Flange with Concealed Fasteners
    • Stainless Steel Lock Nuts
    • Flush Strike
    • O-Ring Seals for Water Resistance
    • Does Not Rattle when "Dogged" Down
    • For Securely "Dogging" (Fastening) Deck Hatches
Technical Information
  • Max. Hatch Thickness: 2"
  • Adjustment Cam Bar: 1-1/4" to 2"
  • Dimensions Face Plate: 4-3/8"
  • Screw Size: #8
Ordering Information
Type
Visible Mounting Holes
Latch
Cam Bar Length Inches1-1/2
Standard Pkg. - 1 Pc.0778001CHR
Ship. Wt. Carton Lbs. Std. Pkg.1.4
Latch
Cam Bar Length Inches3
Standard Pkg. - 1 Pc.0778002CHR
Ship. Wt. Carton Lbs. Std. Pkg.1.5
Lock
Cam Bar Length Inches1-1/2
Standard Pkg. - 1 Pc.0778L01CHR
Ship. Wt. Carton Lbs. Std. Pkg.1.6
Lock
Cam Bar Length Inches3
Standard Pkg. - 1 Pc.0778L02CHR
Ship. Wt. Carton Lbs. Std. Pkg.1.7
Concealed Fasteners
Latch
Cam Bar Length Inches1-1/2
Standard Pkg. - 1 Pc.0778F01CHR
Ship. Wt. Carton Lbs. Std. Pkg.1.6
Latch
Cam Bar Length Inches3
Standard Pkg. - 1 Pc.0778F02CHR
Ship. Wt. Carton Lbs. Std. Pkg.1.6
Lock
Cam Bar Length Inches1-1/2
Standard Pkg. - 1 Pc.0778FL1CHR
Ship. Wt. Carton Lbs. Std. Pkg.1.9
Lock
Cam Bar Length Inches3
Standard Pkg. - 1 Pc.0778FL2CHR
Ship. Wt. Carton Lbs. Std. Pkg.1.9
Type Cam Bar Length Inches Standard Pkg. - 1 Pc. Ship. Wt. Carton Lbs. Std. Pkg.
Visible Mounting Holes
Latch 1-1/2 0778001CHR 1.4
Latch 3 0778002CHR 1.5
Lock 1-1/2 0778L01CHR 1.6
Lock 3 0778L02CHR 1.7
Concealed Fasteners
Latch 1-1/2 0778F01CHR 1.6
Latch 3 0778F02CHR 1.6
Lock 1-1/2 0778FL1CHR 1.9
Lock 3 0778FL2CHR 1.9
Instructions & Resources
View in Print Catalog View 0778 in our Print Catalog
Spare Parts

Cam Bar for Size #1: 077700199A

Cam Bar for Size #2: 077700299A
