P-Trap Vent Valve

Black polymer body with either black or white polymer splash guard
Multiple styles of splash guards, connection options to fit 5/16" or 5/8" vent line hoses
5/8" vent line option provides sufficient airflow for refueling vapors
Helps reduce system cost by allowing for less expensive, smaller vent lines and hose clamps.
Easily connects to PERKO® canisters with 5/16" hose barbs.
Allows vapor to vent from tank during thermal expansion of fuel.
Allows fresh airflow into the tank during thermal contraction of fuel and when engine is running
Helps to protect canisters and fuel systems from water
Deflector style vent opening reduces water volume entering assembly
Internal P-Trap and check valve prevents water from passing through assembly into fuel system
90° hose connection (to vent axis)

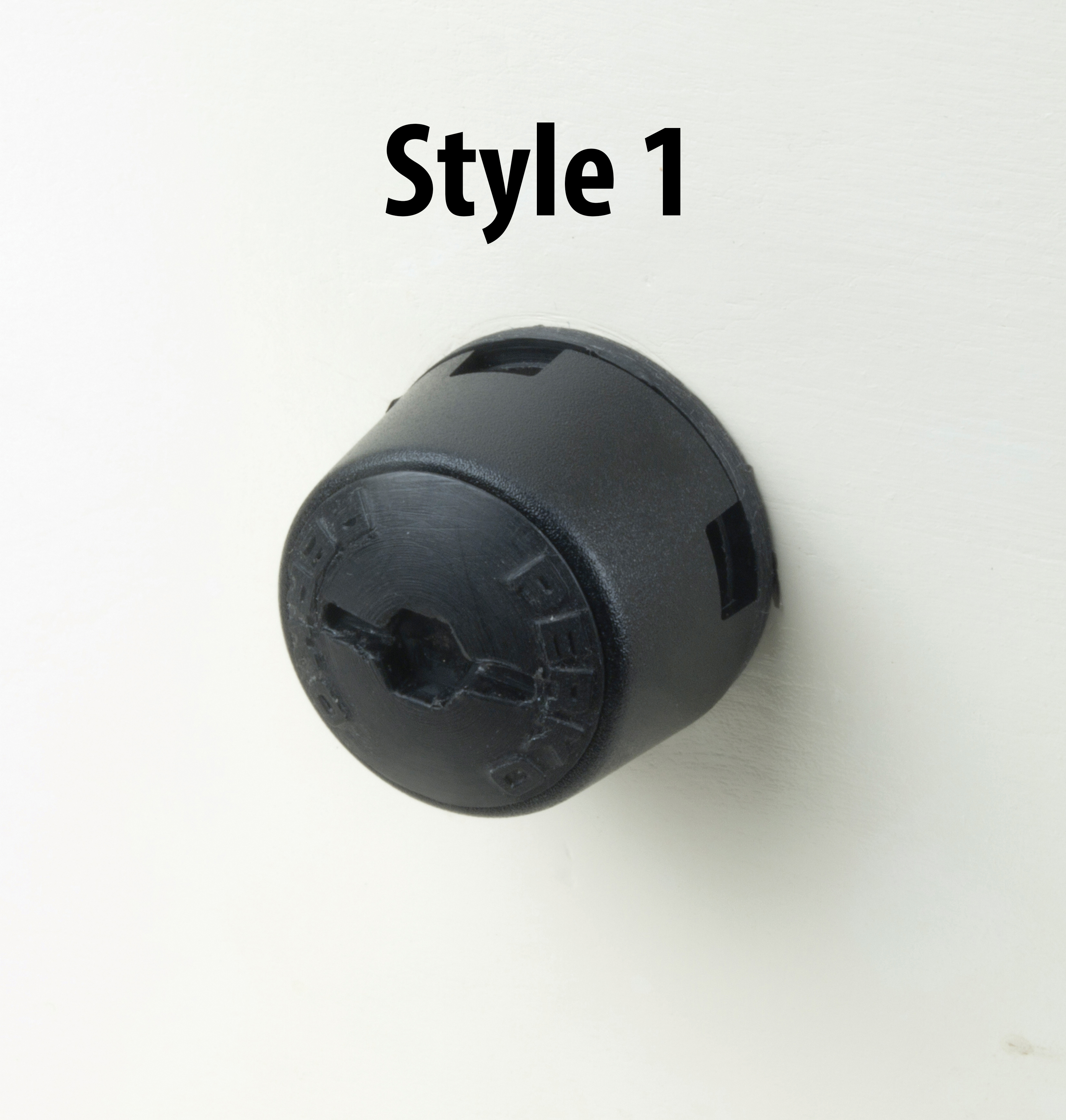

Style 1 Mounted

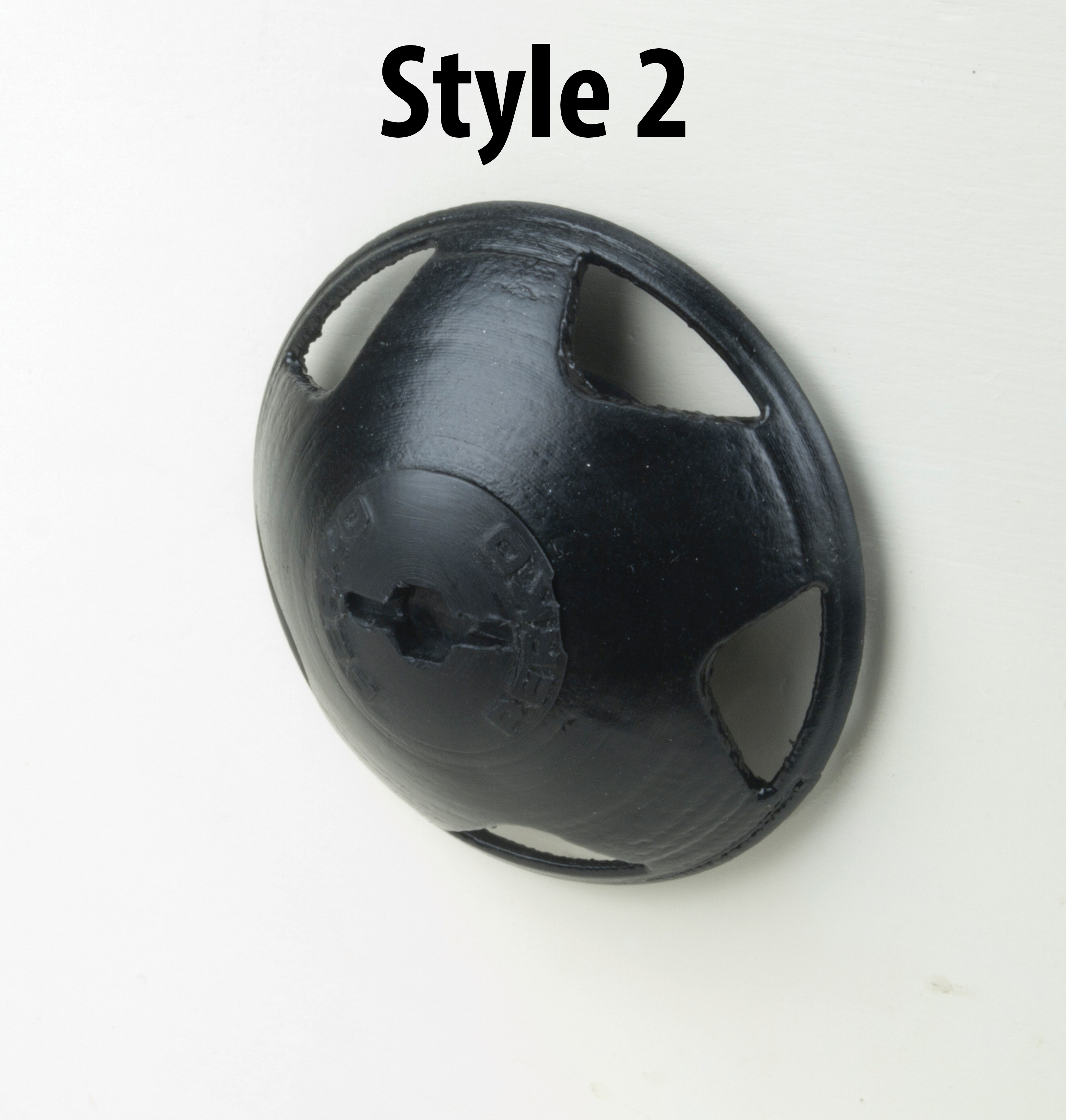

Style 2 Mounted

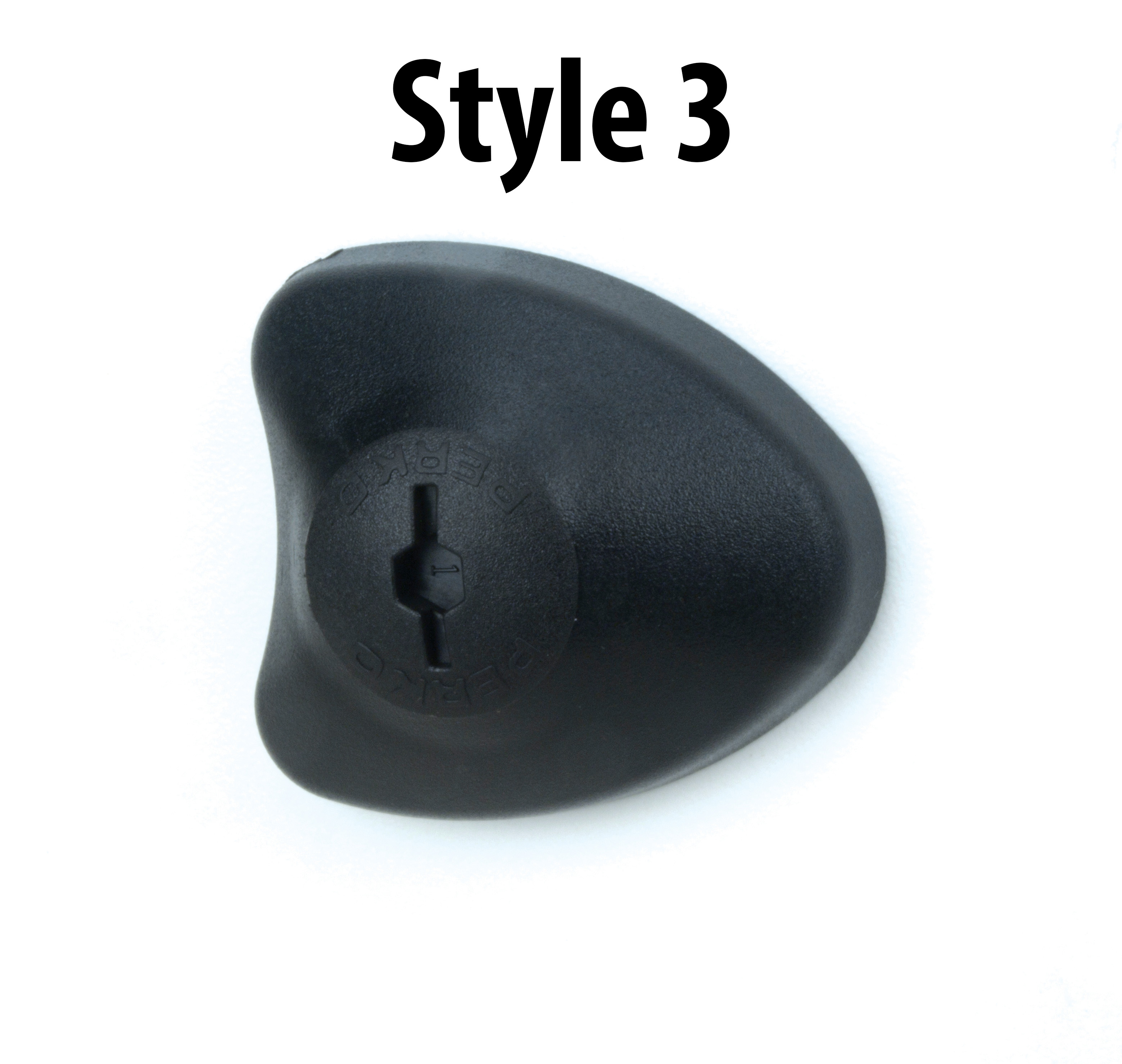

Style 3 Mounted

Catalog Number	Vent Line Hose Size	Splash Guard Style	Splash Guard Color	OEM Bulk Pkg. Qty.	Shipping Weight Carton Lbs.

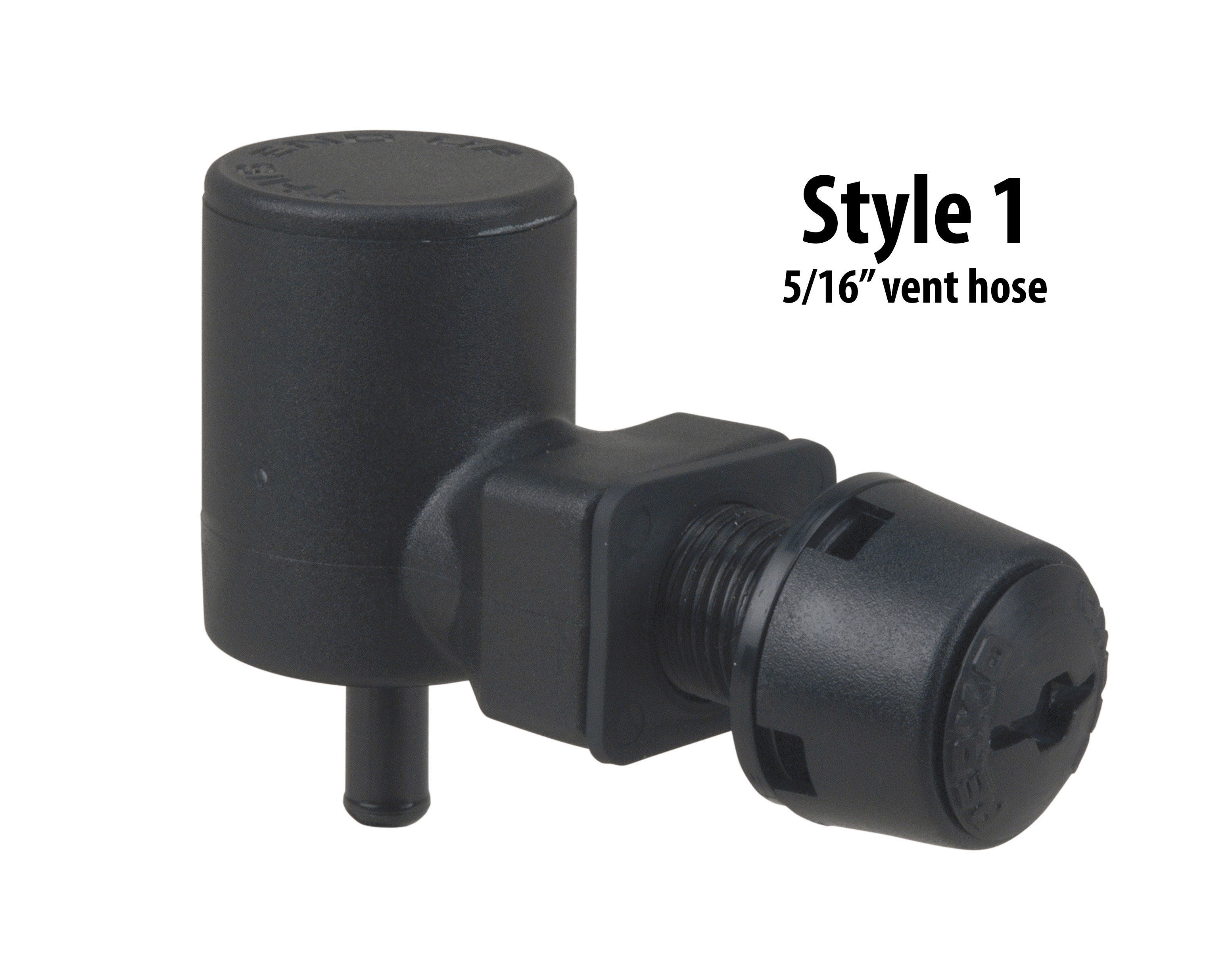

0632011BLK	5/16	Style 1	Black	25	5.0
0632011WHT	5/16	Style 1	White	25	5.0

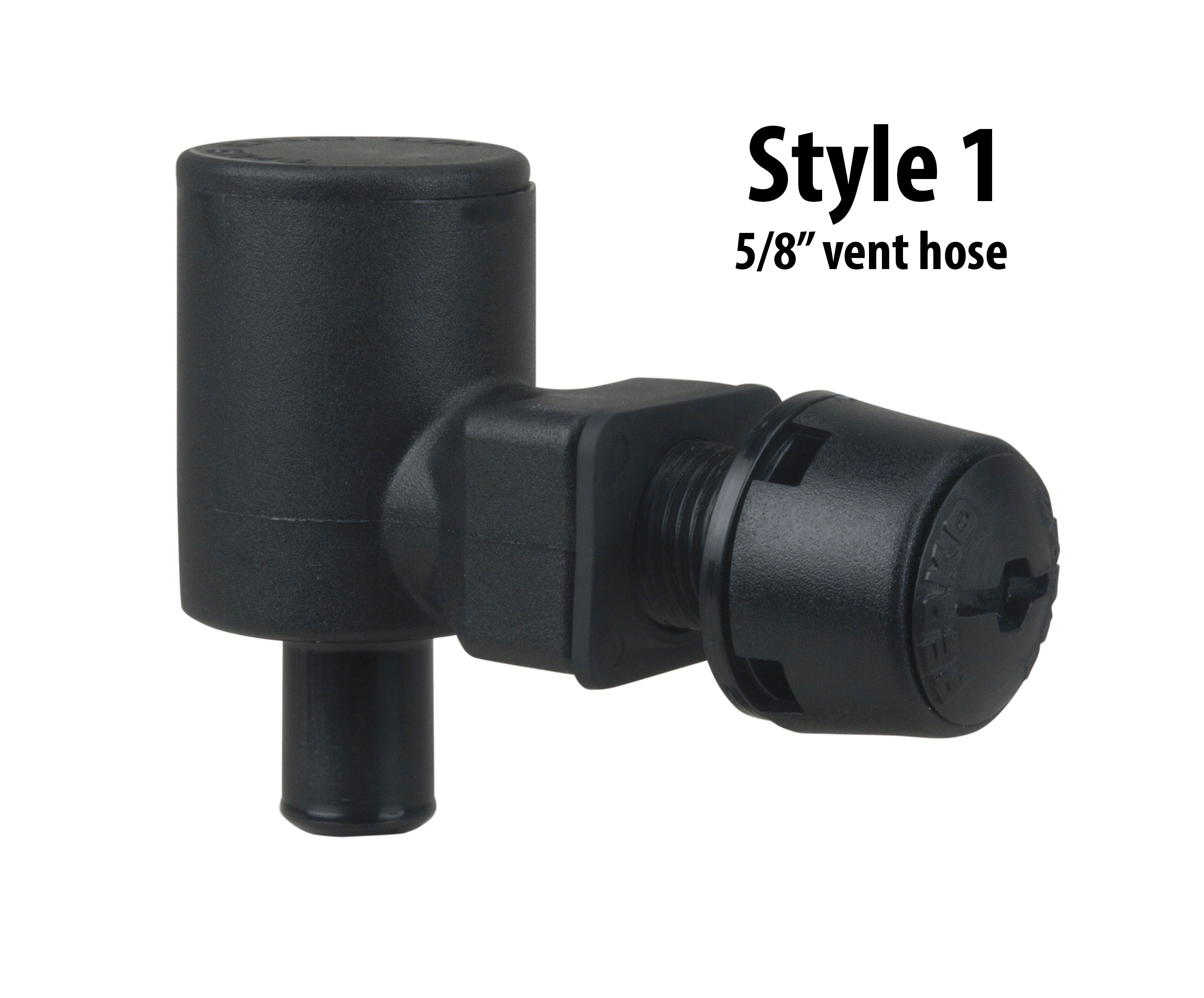

0632014BLK	5/8	Style 1	Black	25	5.0
0632014WHT	5/8	Style 1	White	25	5.0

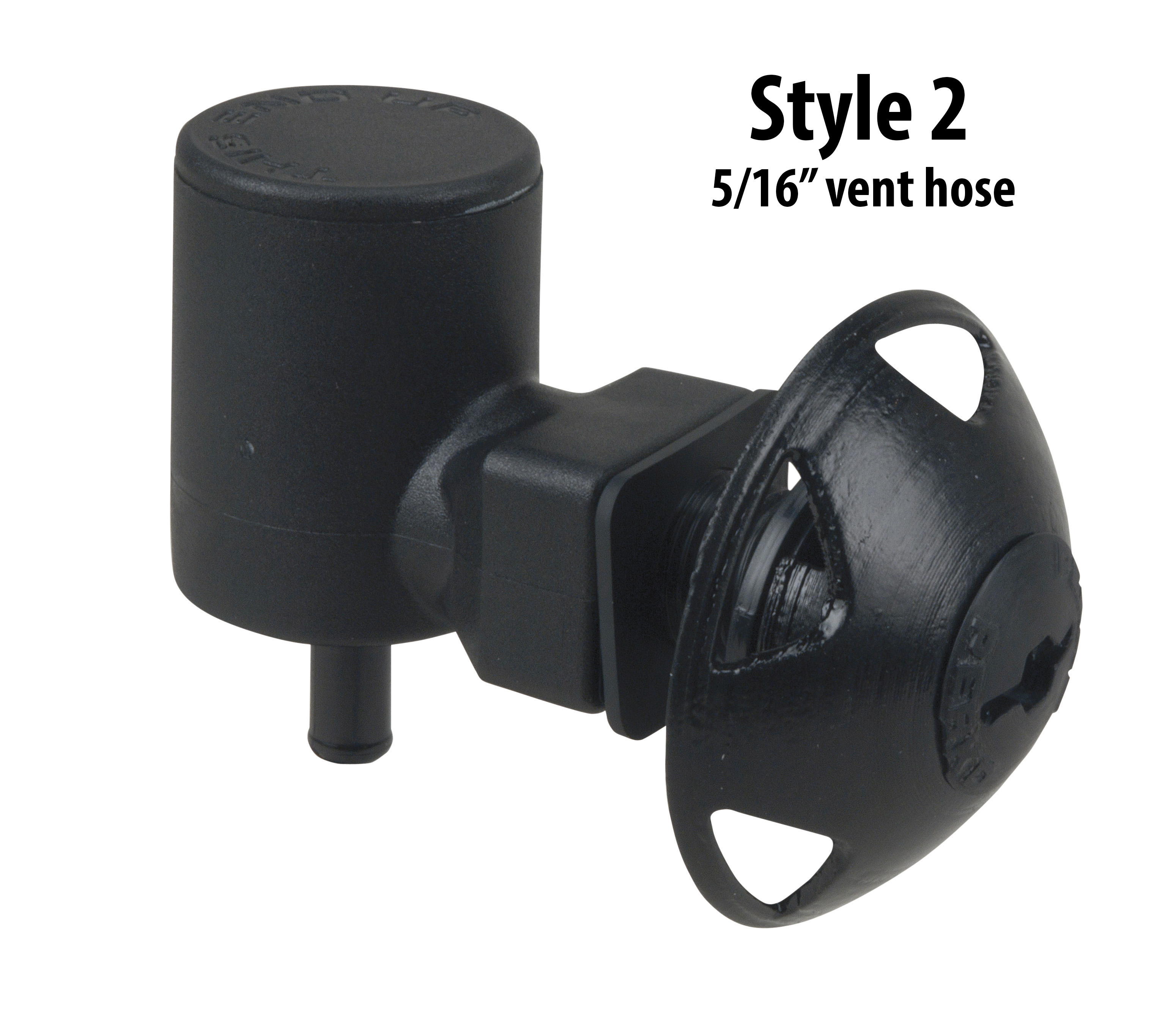

0632021BLK	5/16	Style 2	Black	25	5.0
0632021WHT	5/16	Style 2	White	25	5.0
0632024BLK	5/8	Style 2	Black	25	5.0
0632024WHT	5/8	Style 2	White	25	5.0

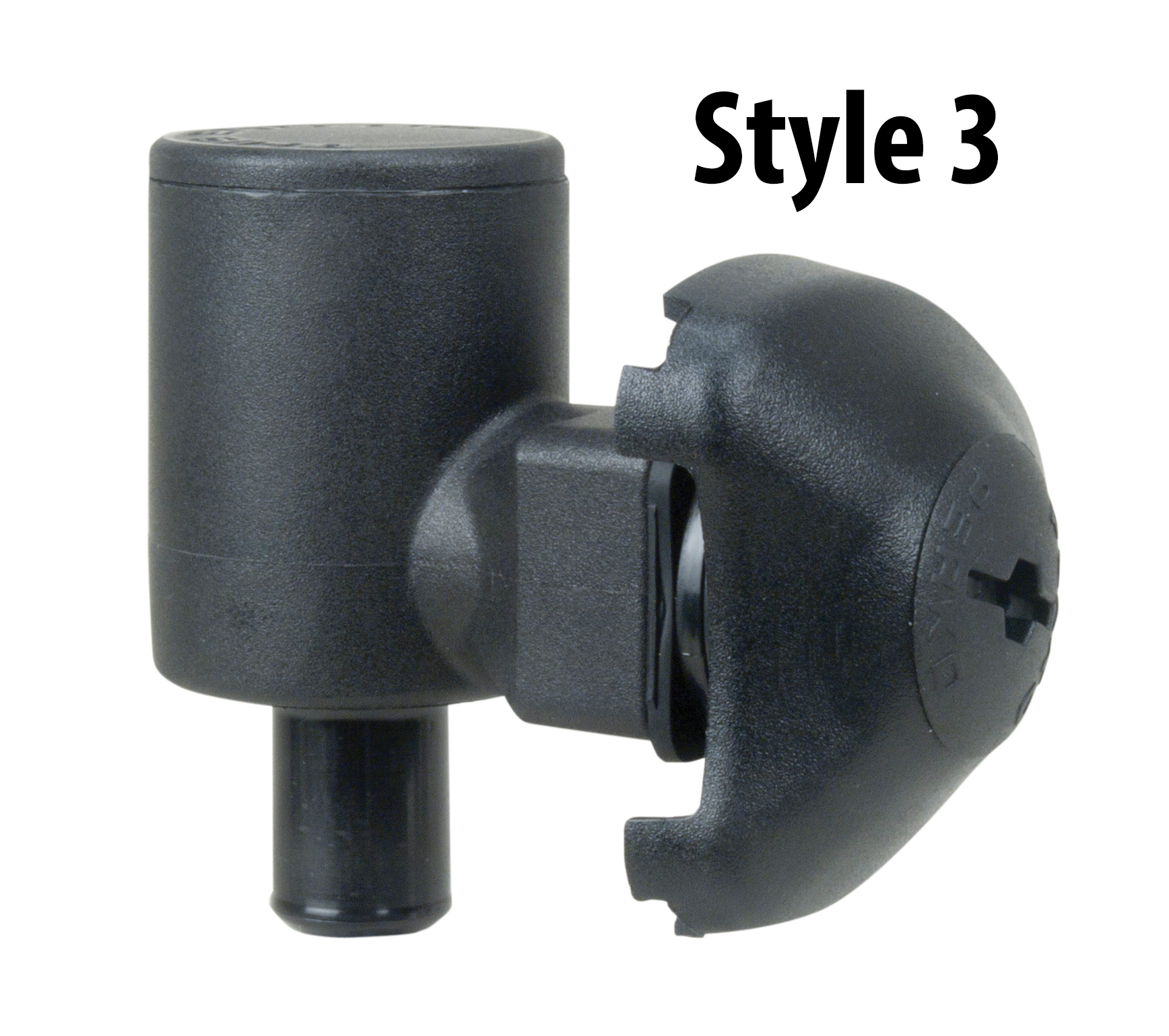

0632031BLK	5/16	Style 3	Black	25	5.0
0632031WHT	5/16	Style 3	White	25	5.0
0632034BLK	5/8	Style 3	Black	25	5.0
0632034WHT	5/8	Style 3	White	25	5.0
