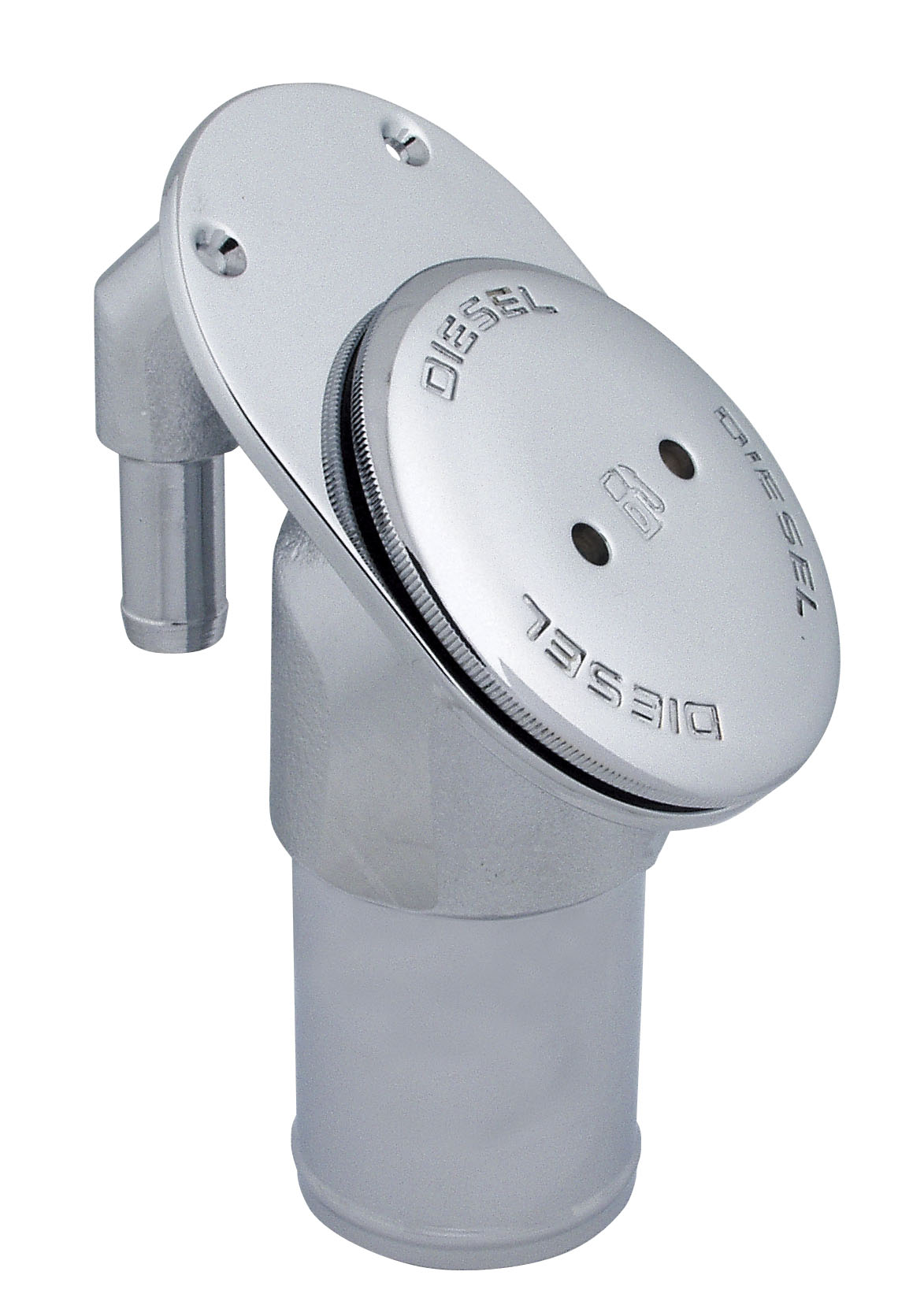

Angled Vented Fuel Fill for 2 Inch Hose

[Fig. No. 0579]

Product Description

Chrome Plated Bronze
Integral Tank Vent with Flame Arrestor
Angled Neck
O-Ring and Integral Retainer on Cap Included
Ground Wire Required

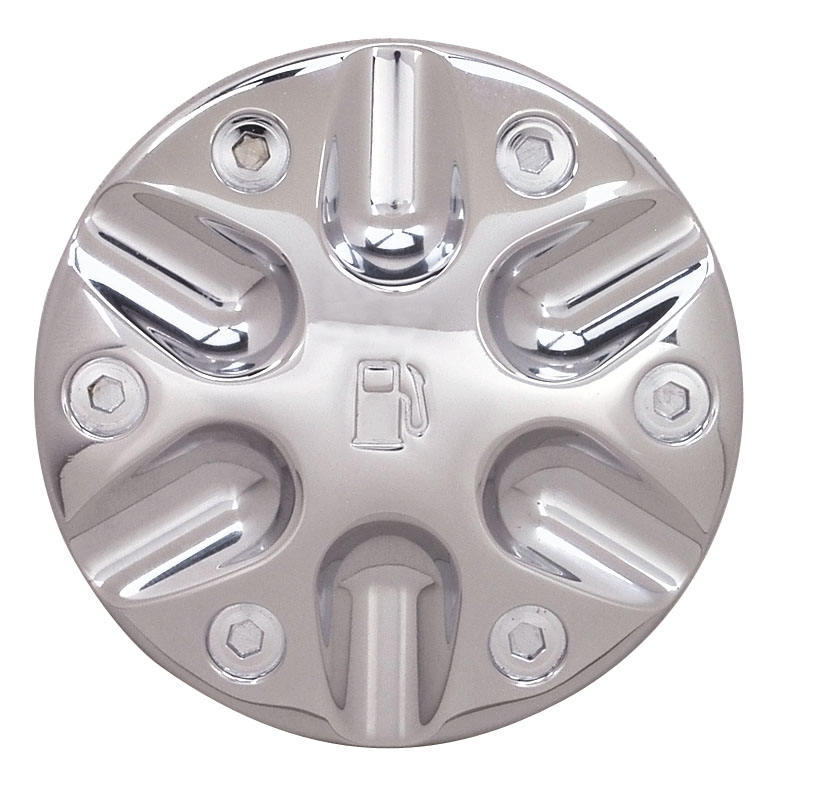

Alternate Style Cap Available. Contact Factory.

Technical Information

For Fuel Hose: 2"
For Vent Hose: 5/8"
Neck Length: 4-3/4"
Screw Size: #8

Ordering Information

Marked For	Std. Pkg. - 1 Pc.	Ship Wt. Carton Lbs. Std. Pkg.
Gas	0579G00CHR*	2.5
Diesel	0579D00CHR	2.4

Instructions & Resources

0579 Installation Instructions

View 0579 in our Print Catalog

Product Notes

*NOTE: These Items Meet the Requirements of U.S.C.G. Safety Standards, January 31, 1977, for Gasoline Fuel Systems, 33 CFR 183. Fills shown on this page DO NOT meet the requirements for 40 CFR 1060 sub part B Emissions Standards and Related Requirements.
