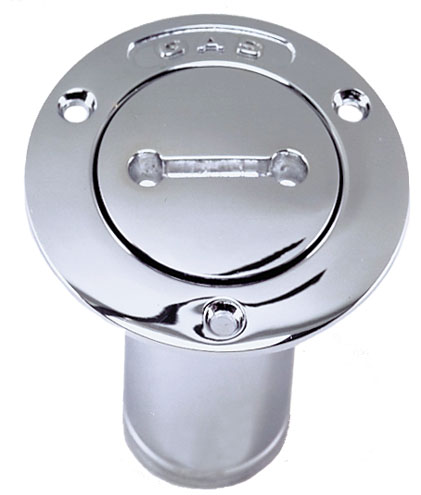

Fuel & Water Fills for 1-1/2" Hose

[Fig. No. 0520]

Product Description

Chrome Plated Bronze
Deck Plate Key and O-Ring and Included
Retainer on Cap
Cap has a slot between the holes
Ground Wire Required

Technical Information

For Hose Size: 1-1/2"
O.D. Flange: 3-1/8"
Neck Length : 3-1/2"
Mounting Hole Diameter: 2-1/8"
Screw Size: #8

Ordering Information

Marked For	Dealer Pkg. - 5 Cards 1 Pc. per Card	OEM Bulk Pkg. 25 Pcs.	Ship Wt. Carton Lbs. DP/OEM Bulk
Gas	0520DPGCHR*	0520G00CHR*	4.2/19.9
Diesel	0520DPDCHR	0520D00CHR	4.2/19.9
Water	0520DPWCHR	0520W00CHR	4.2/19.9

Instructions & Resources

View 0520 in our Print Catalog

Product Notes

*NOTE: These Items Meet the Requirements of U.S.C.G. Safety Standards, January 31, 1977, for Gasoline Fuel Systems, 33 CFR 183. Fills shown on this page DO NOT meet the requirements for 40 CFR 1060 sub part B Emissions Standards and Related Requirements.
