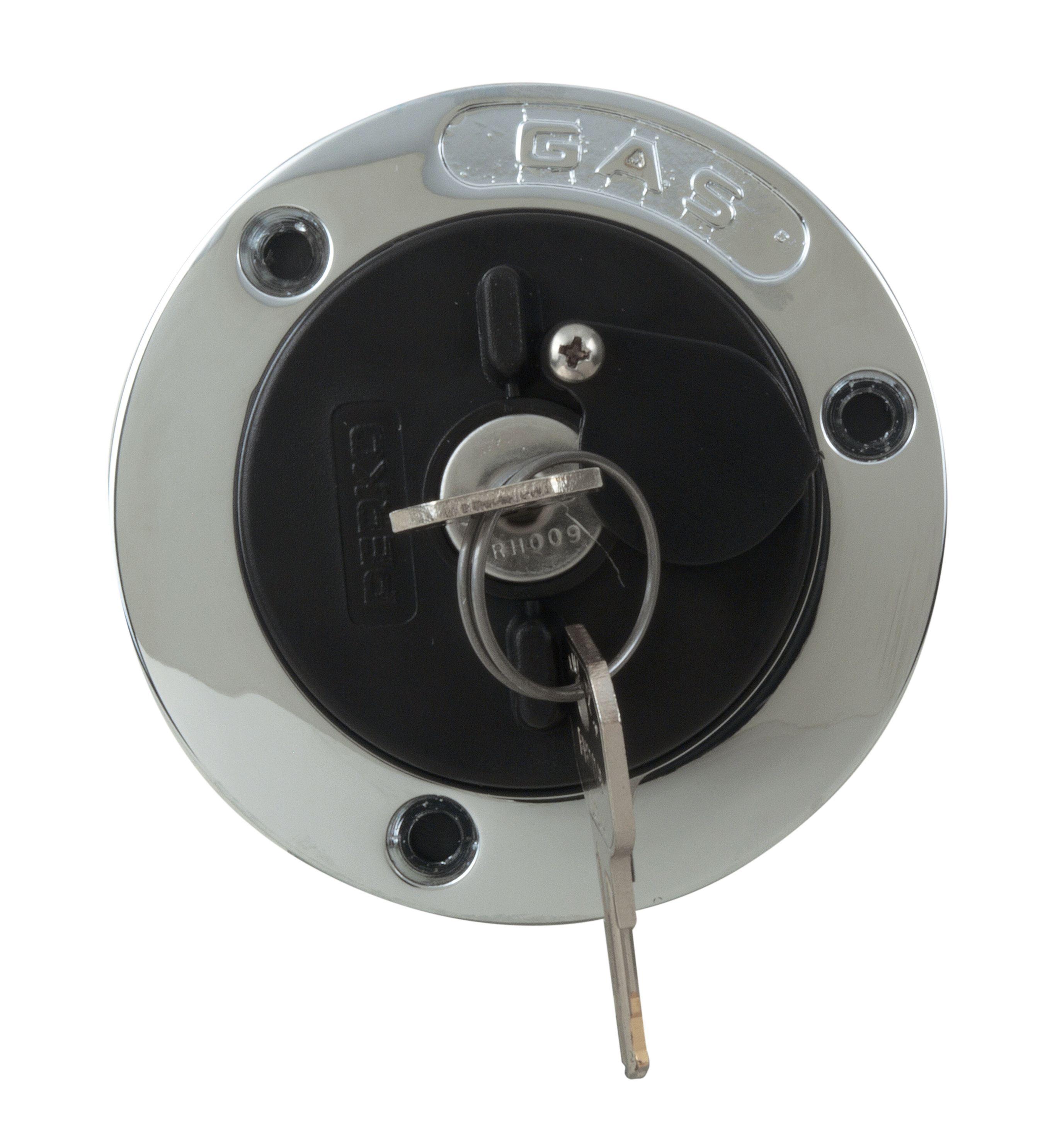

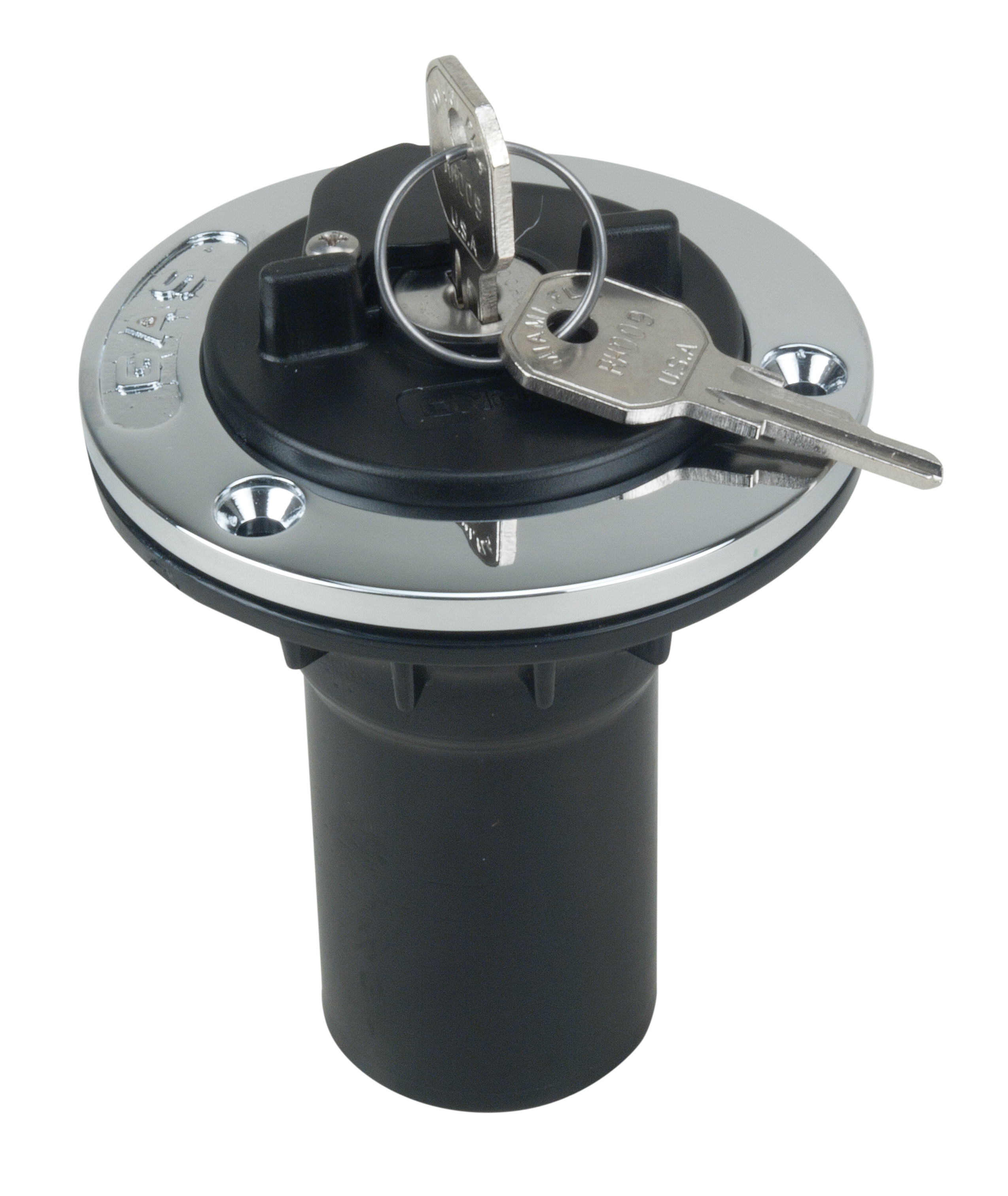

Gas Fill with Locking Cap for 1-1/2" Hose

[Fig. No. 0599]

Product Description

Chrome Plated Bronze Flange
Black Polymer Body
Black Polymer Locking Cap with Strap
Grounding Screw Included
Cap Retainer and Gasket
Locking Cap has a cover for the key hole

Technical Information

For Hose Size: 1-1/2"

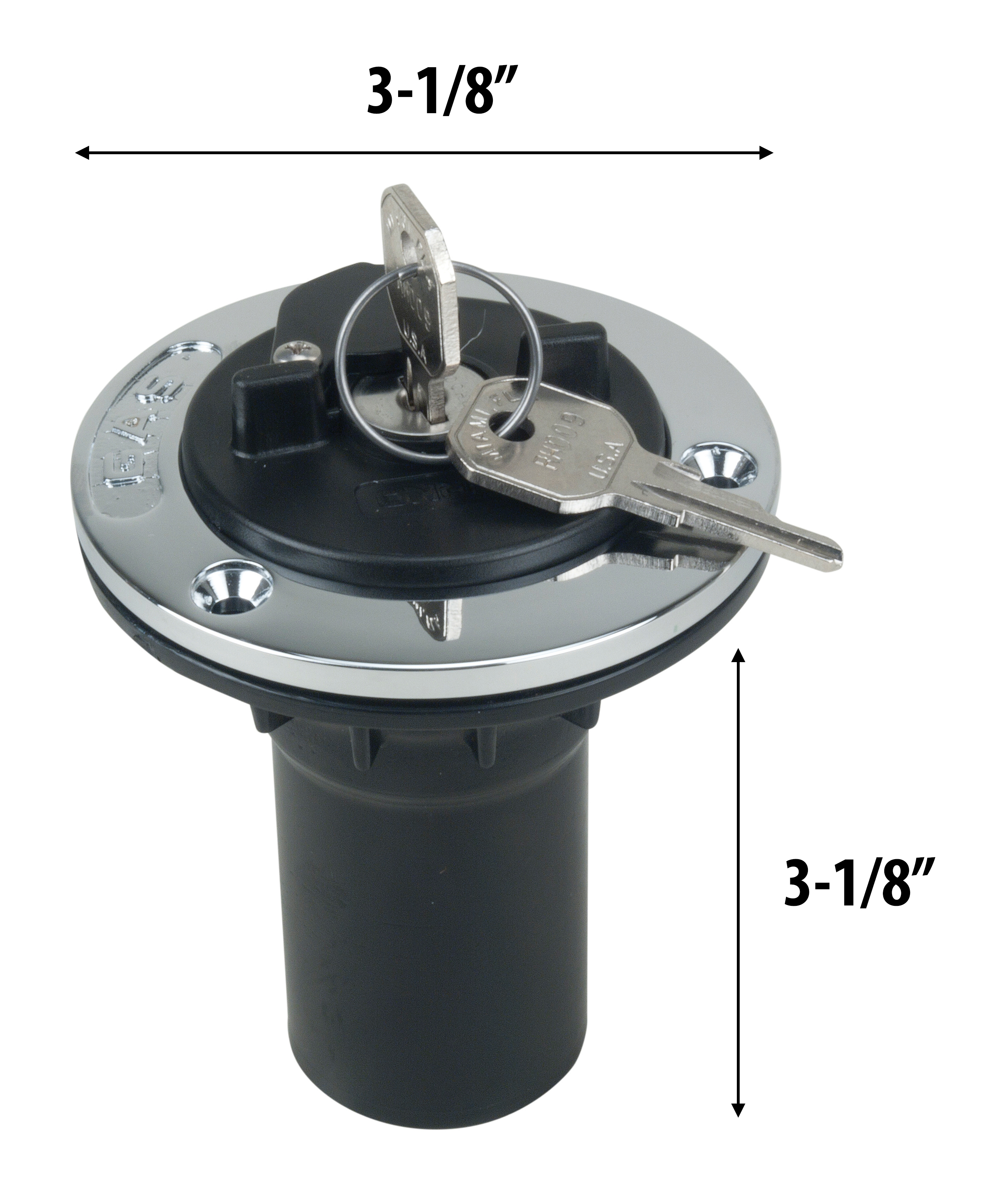

O.D. Flange: 3-1/8"
Neck Length: 3-1/8"
Mounting Hole Diameter: 2-1/8"
Screw Size: #8

Ordering Information

Marked For	Dealer Pkg. 5 Cards 1 Pc. per Card	OEM Bulk Pkg. 25 Pcs.	Ship Wt. Carton Lbs. Std. Pkg./OEM Bulk
Gas	0599DPGCHR*	0599G00CHR*	3.1/13.5
Diesel	0599DPDCHR	0599D00CHR	3.1/13.5

Instructions & Resources

Fig. 0599 Installation Instructions

View Fig. 0599 in our Print Catalog

Product Notes

*NOTE: These Items Meet the Requirements of U.S.C.G. Safety Standards, January 31, 1977, for Gasoline Fuel Systems, 33 CFR 183. Fills shown on this page DO NOT meet the requirements for 40 CFR 1060 sub part B Emissions Standards and Related Requirements
