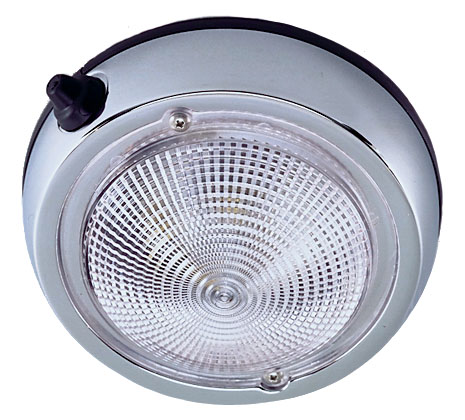

Surface Mount Dome Light
Product Description
- Chrome Plated Zinc Alloy
- Clear Polymer Lens
- Double Contact Bayonet Socket
- Black Vinyl Mounting Gasket
- Push Switch with Water Resistant Boot
Technical Information
- Voltage: 12 Volt (Bulb Included)
Ordering Information
| O.D. Lens Inches | |
|---|---|
| 3 | |
| O.D. Base Inches | 3-3/4 |
| Depth Overall Inches | 1-1/2 |
| Wattage of Bulb Supplied | 7 |
| Amps | .58 |
| Maximum Wattage | 11 |
| Dealer Pkg. - 5 Cards 1 Pc. per Card | 0300DP0CHR |
| OEM Bulk Pkg. 10 Pcs. | 0300000CHR* |
| Screw Size | 10 R.H. |
| Ship Wt. Carton Lbs. DP/OEM Bulk | 3.2/10.6 |
| 4 | |
| O.D. Base Inches | 5 |
| Depth Overall Inches | 1-7/8 |
| Wattage of Bulb Supplied | 11 |
| Amps | .94 |
| Maximum Wattage | 17 |
| Dealer Pkg. - 5 Cards 1 Pc. per Card | 0300DP1CHR |
| OEM Bulk Pkg. 10 Pcs. | 0300001CHR |
| Screw Size | 10 R.H. |
| Ship Wt. Carton Lbs. DP/OEM Bulk | 4.9/8.7 |
| 5 | |
| O.D. Base Inches | 6 |
| Depth Overall Inches | 2 |
| Wattage of Bulb Supplied | 17 |
| Amps | 1.44 |
| Maximum Wattage | 17 |
| Dealer Pkg. - 5 Cards 1 Pc. per Card | 0300DP2CHR |
| OEM Bulk Pkg. 10 Pcs. | 0300002CHR |
| Screw Size | 12 R.H. |
| Ship Wt. Carton Lbs. DP/OEM Bulk | 6.9/11.8 |
| O.D. Lens Inches | O.D. Base Inches | Depth Overall Inches | Wattage of Bulb Supplied | Amps | Maximum Wattage | Dealer Pkg. - 5 Cards 1 Pc. per Card | OEM Bulk Pkg. 10 Pcs. | Screw Size | Ship Wt. Carton Lbs. DP/OEM Bulk |
|---|---|---|---|---|---|---|---|---|---|
| 3 | 3-3/4 | 1-1/2 | 7 | .58 | 11 | 0300DP0CHR | 0300000CHR* | 10 R.H. | 3.2/10.6 |
| 4 | 5 | 1-7/8 | 11 | .94 | 17 | 0300DP1CHR | 0300001CHR | 10 R.H. | 4.9/8.7 |
| 5 | 6 | 2 | 17 | 1.44 | 17 | 0300DP2CHR | 0300002CHR | 12 R.H. | 6.9/11.8 |
Instructions & Resources
Product Notes
To Use in a 24 Volt System, order replacement bulb (1 per card): 0337014DP
*Figure No. 0300000CHR OEM Bulk includes 20 Pieces instead of 10
Spare Parts
Bulbs (2 per card) for Size #0: 0337011DP
Bulbs (2 per card) for Size #1: 0337012DP
Bulbs (2 per card) for Size #2: 0337013DP
Switch: 0701DP
Socket: 0024DP1
Lens: 0257DP, Specify Size
Example: 0257DP5 - for 5 inch lens
