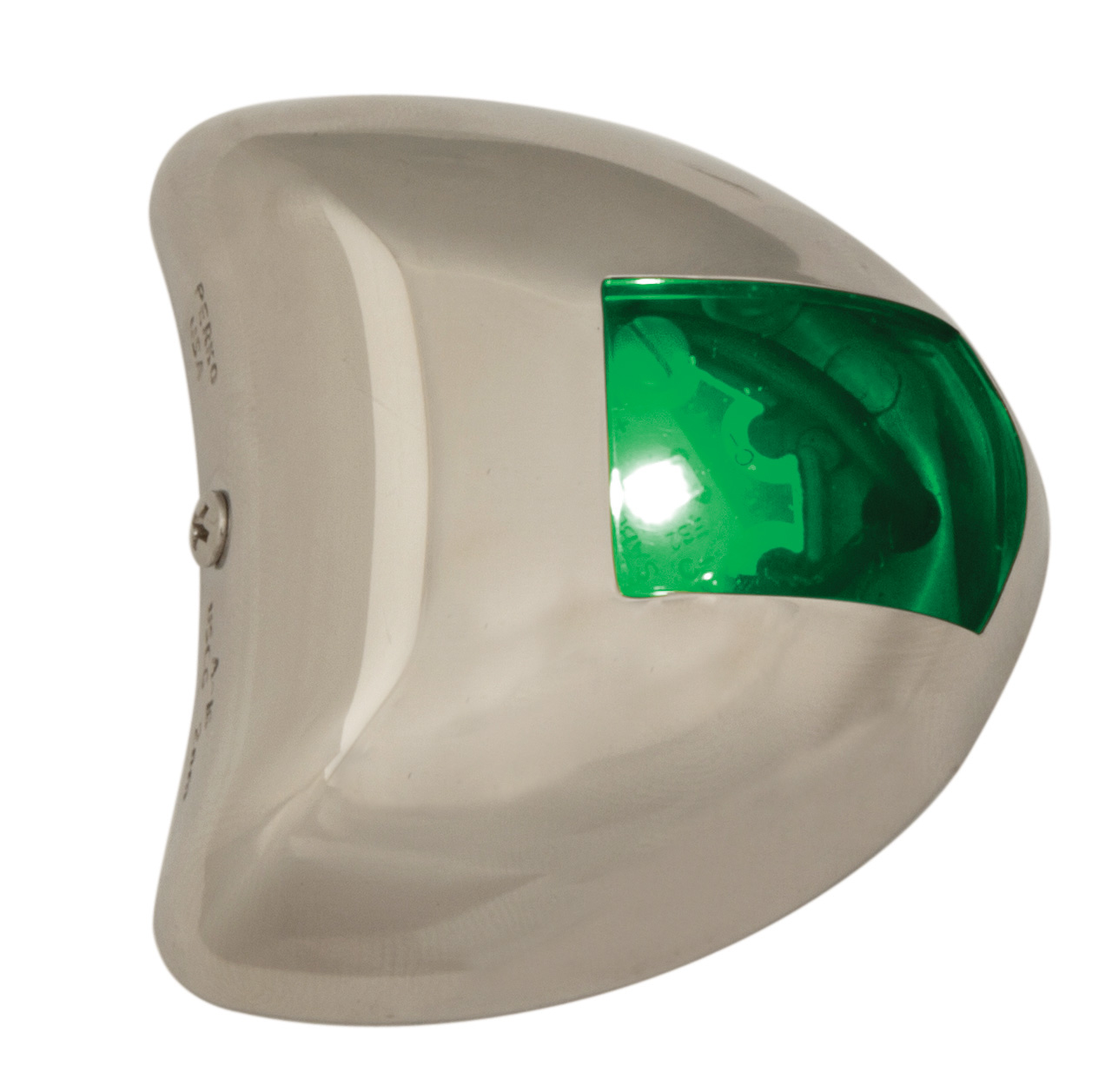

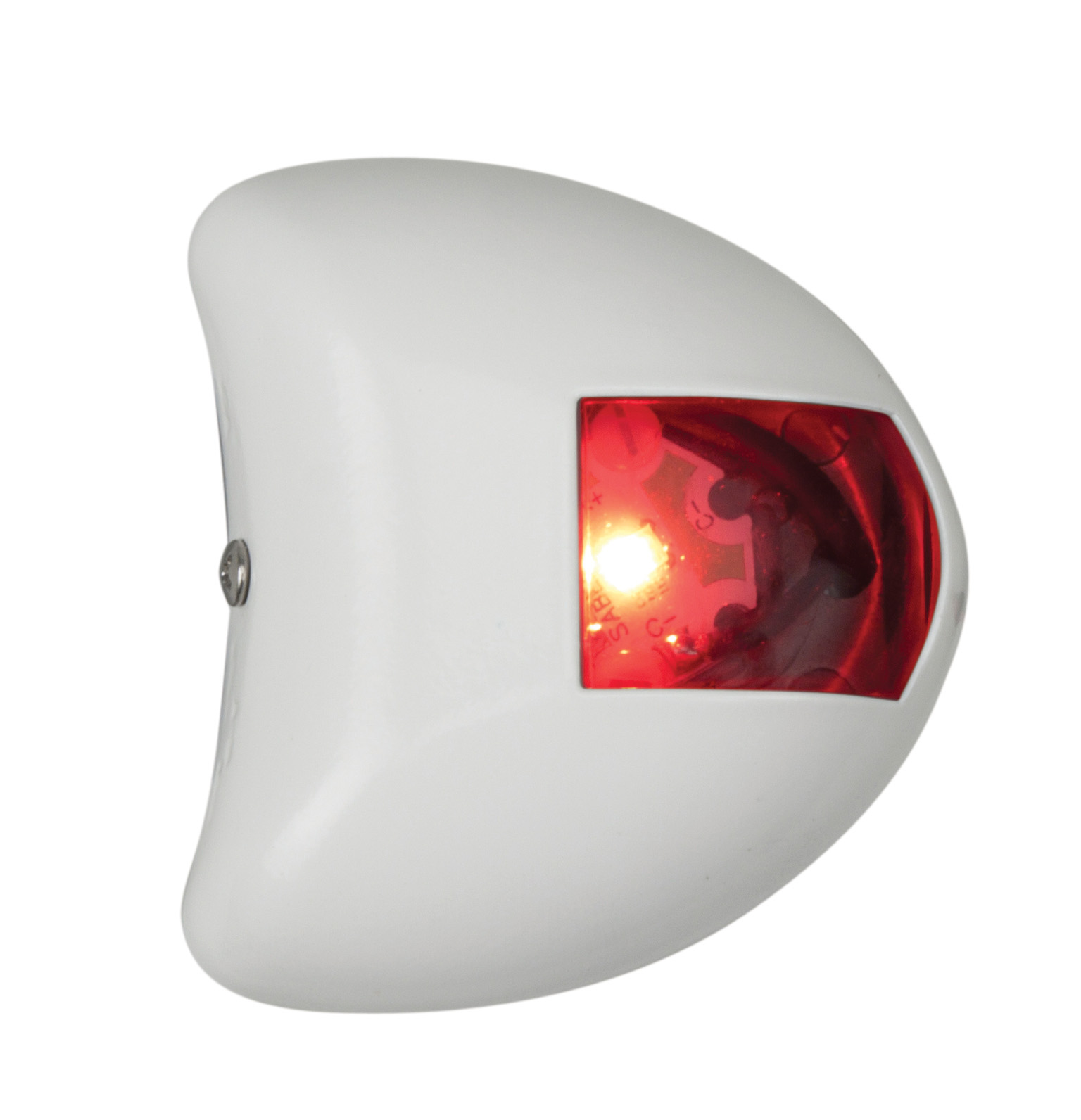

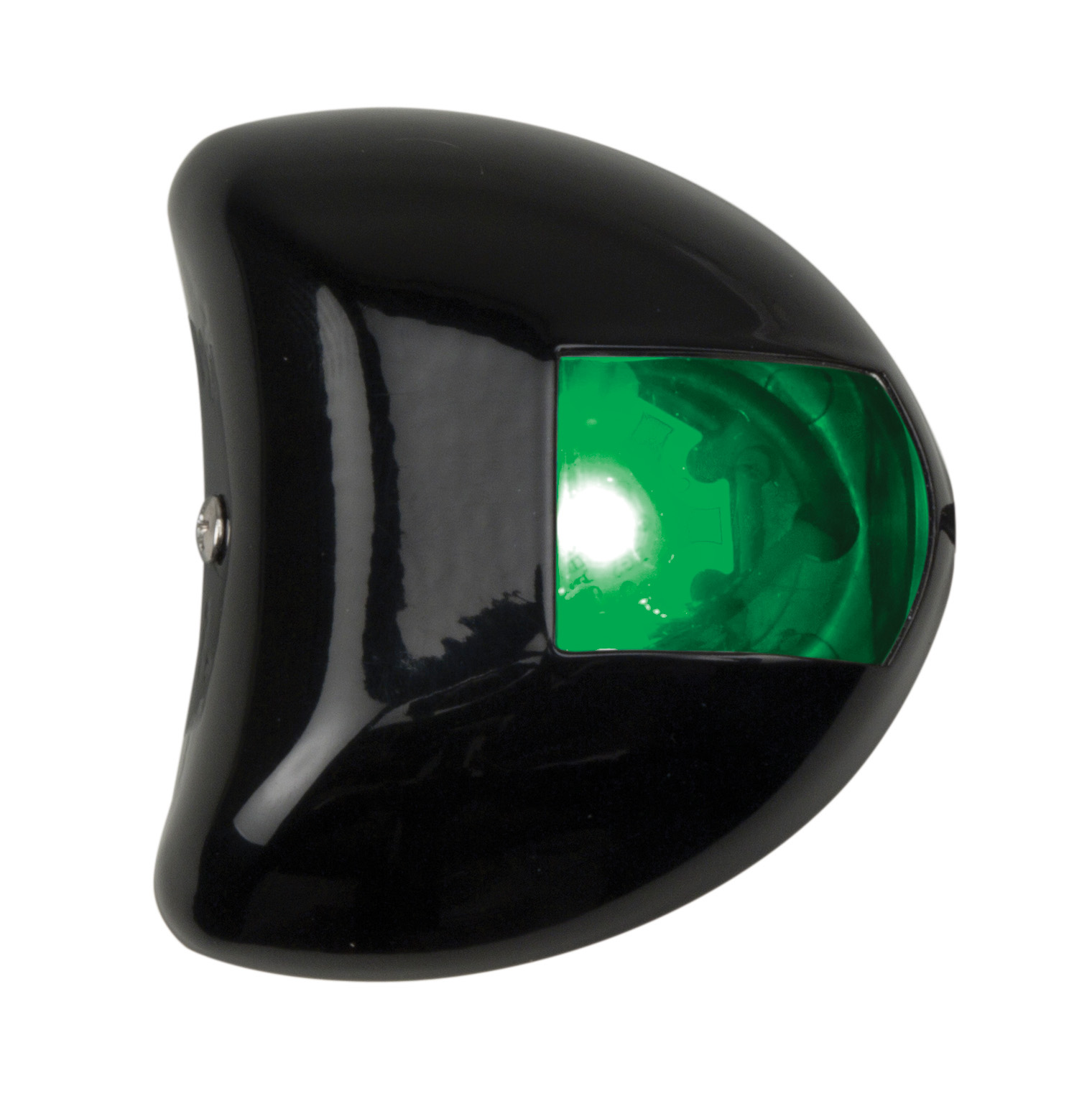

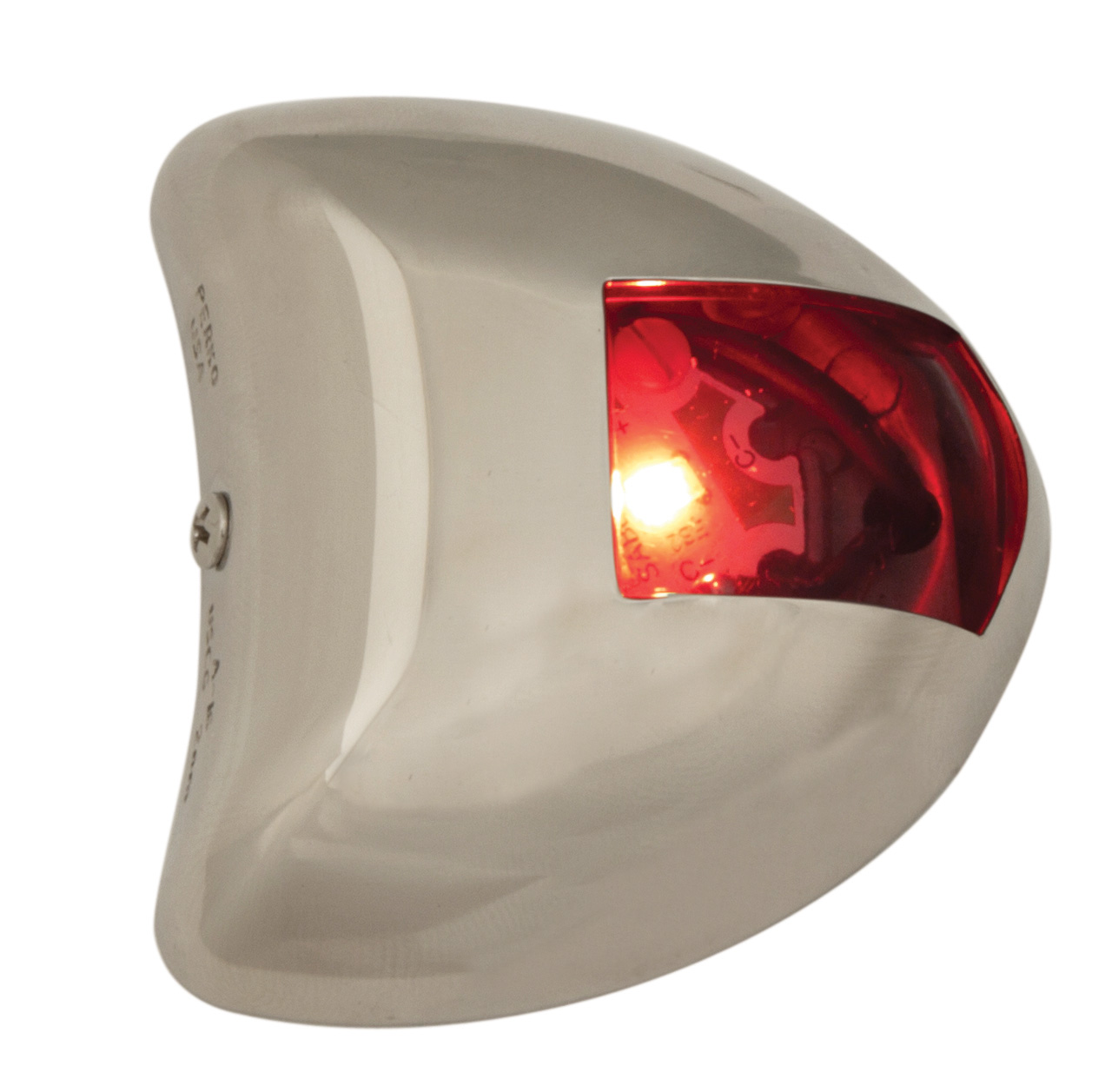

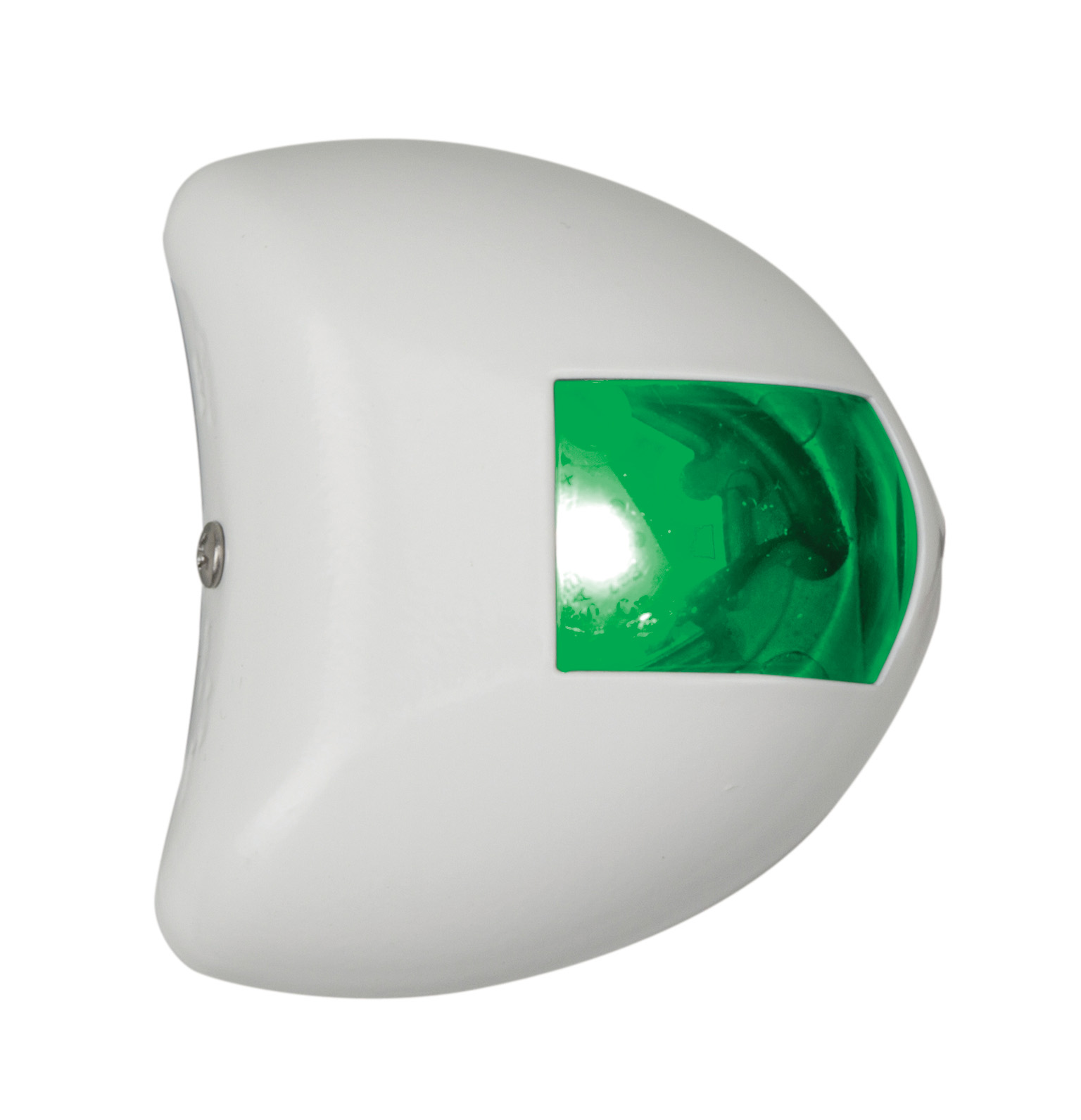

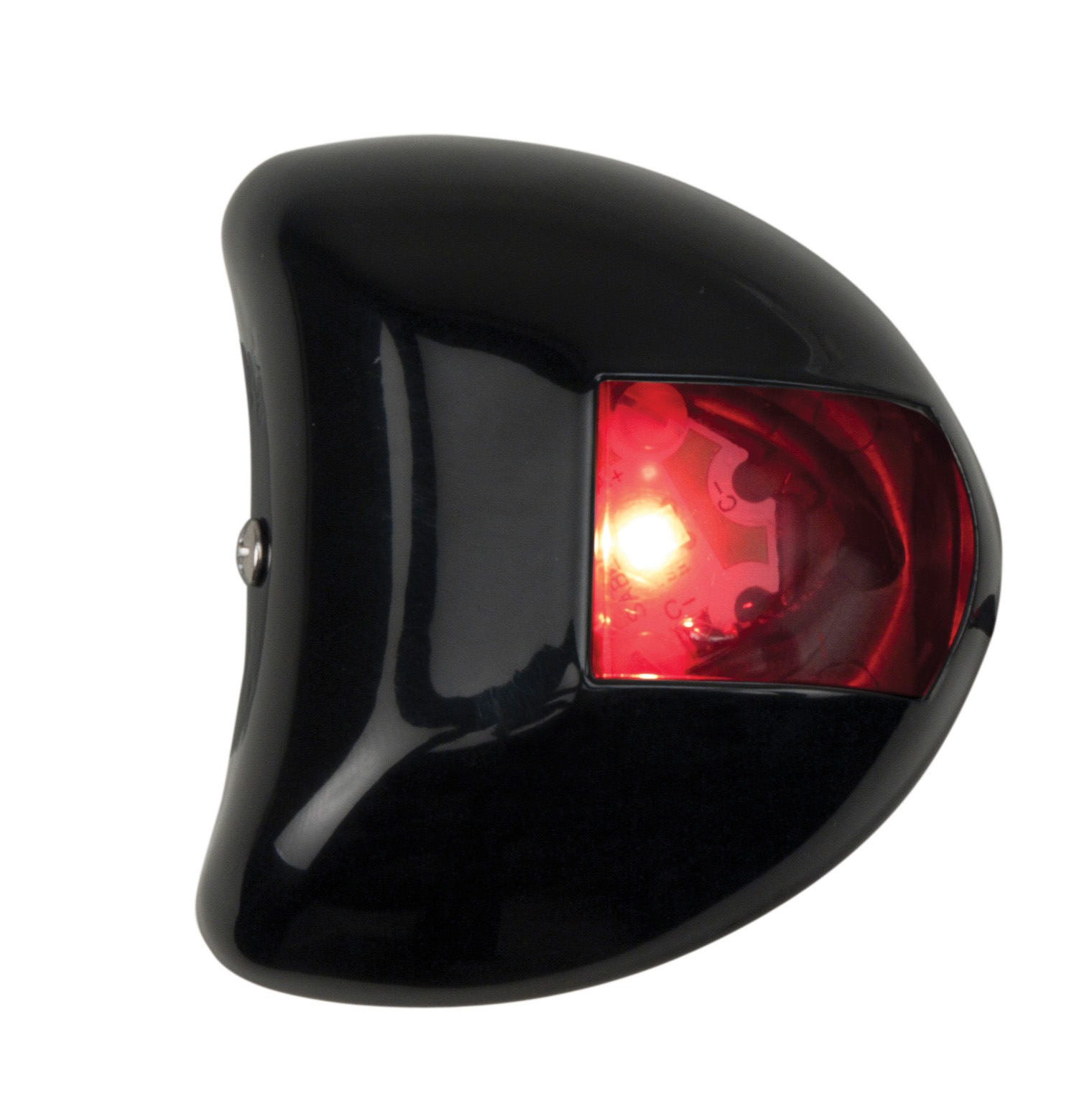

LED Stealth II Series - Vertical Mount Side Light

For Replacement Use Only on Power Driven Vessels Under 12m (39.4) in length

Available Finishes
Stainless Steel
Black
White
Product Description
LED Technology
    • Stainless Steel, Black or White PERKO•KOTE
    • Ultra Low Profile
    • Vertical Mount
    • Uses 10% of the Energy Draw of Standard Lights
    • Low Heat and Long Life
    • For Use on Power Driven Vessels Under 12m (39.4) in length
Technical Information
  • Visibility: 1 nautical mile
  • Voltage: 12 Volt LED
  • Wattage: 2.6 watts (each light)
  • Amperage: 0.2 amps (each light)
  • Projection: 5/8"
  • Length: 2-1/2"
  • Width: 2-5/8"
  • Screw Size: #8
Ordering Information
Finish Dealer Pkg. 1 Card 1 Pair per Card OEM Bulk Pkg. 10 Each Ship Wt. Carton Lbs. DP/OEM Bulk
Stainless 0617DP2STS 0617000STS 0.8/5.5
Black 0617DP2BLK 0617000BLK 0.8/5.5
White 0617DP2WHT 0617000WHT 0.8/5.5
Spare Parts
Spare gasket kit required for mounting on metallic surfaces (optional for fiberglass surfaces) 0617000GKT (included in D.P. package).
