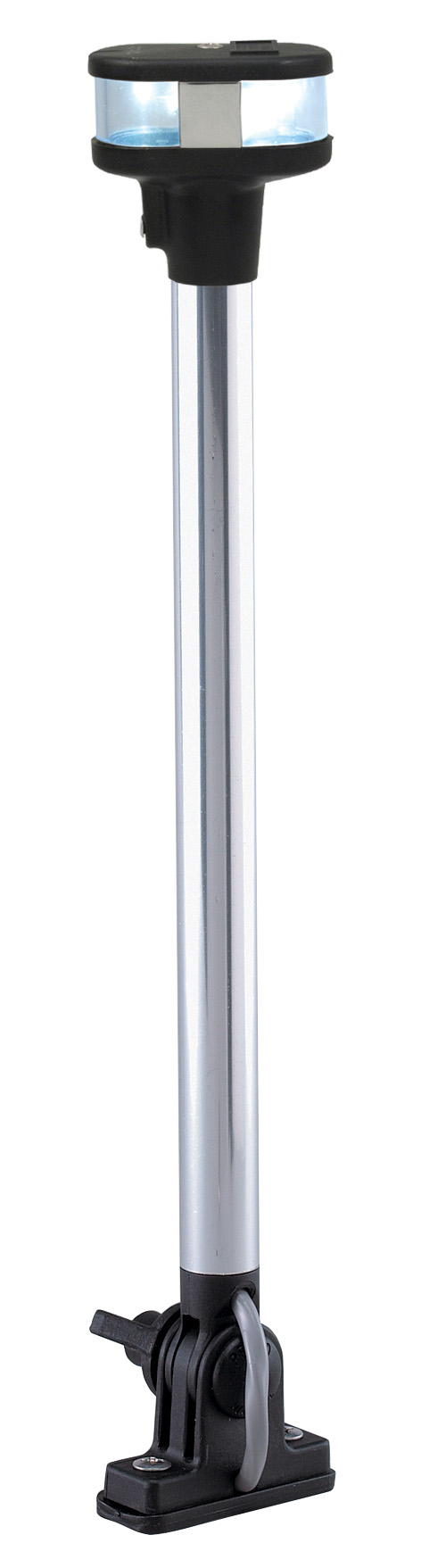

LED Folding Vertical Mount Combination Masthead / White All-Round Light

Certified For Use on Sail or Power Driven Vessels Under 20 Meters (65.6 ft.) in Length

Product Description

LED Technology

Black Polymer Top and Base with Clear Polymer Lens and Chrome Plated Zinc Alloy Insert
Two light compartments (Masthead/Anchor)
Vertical Mount
Folds down 90° in either direction along the plane of attachment plate of the mount.
3-Mile (USCG 3nm) Certified

Technical Information

Voltage: 12 Volt LED
Wattage: 2.2 watts (each compartment)
Amperage: 0.2 amps (each compartment)
Pole: 3/4" Diameter Anodized Aluminum Tube
Height: 13-3/8"
Base Dimensions: 2-1/4" x 5/8"
Center to Center Base Dimensions: 1-5/8"
Screw Size: #8
Gold Plated Contacts

Other Fixed & Folded Mount Options

Fig. 1681 Horizontal Mount

Fig. 1684 Vertical Mount

Fig. 1697 Fixed Mount Short Pole

Fig. 1683 Fixed Mount

Ordering Information

Dealer Pkg. 1 Pc. per Card	OEM Bulk Pkg.	DP/Bulk Pkg. Qty.	Ship Wt. Carton Lbs. DP/OEM Bulk
1684DP0CHR	1684000CHR	1/10	1.0/6.2

Instructions & Resources

Installation Instructions

UKCA Certificate

CE Certificate

View 1684 in our Print Catalog

Product Notes

Wiring Note: When choosing LED upgrades to replace existing incandescent combination masthead/all-round lights, optional Cat. No. 1680DP012V Converter Module is available to avoid re-wiring the navigation light switch.

Because direct wire-to-wire substitution of an older style incandescent light with this new style L.E.D. light will not work, there are two installation alternatives:
1) Rewire the existing switch to match the diagram supplied in the L.E.D. light instructions or,
2) Use the optional converter module (Cat. No 1680DP012V) and follow the wiring in the instructions provided with the new L.E.D. light so that no rewiring of the switch is necessary.
