Side Light

Certified For Use on Power Driven Vessels Under 20 Meters (65.6 ft.) in Length

Available Finishes
Black
White
Product Description
    • Black or White Polymer
    • 2-Mile (USCG 2nm) Certified
Technical Information
  • Voltage: 12 or 24 Volt (Bulb Not Included)
  • For 32 Volt please contact the factory
  • Wattage: 15 watts (12 Volt) / 18 watts (24 Volt)
  • Amperage: .97 amps (12 Volt) / .75 amps (24 Volt)
  • Screw Size: #10
  • Height Overall: 5-1/4"
  • Height Lens: 4-1/4"
  • Visibility Arc: 112-1/2°
Ordering Information
Description Black Polymer Std. Pkg. - 1 Pc. White Polymer Std. Pkg. - 1 Pc. Ship Wt. Carton Lbs. Standard Pkg.

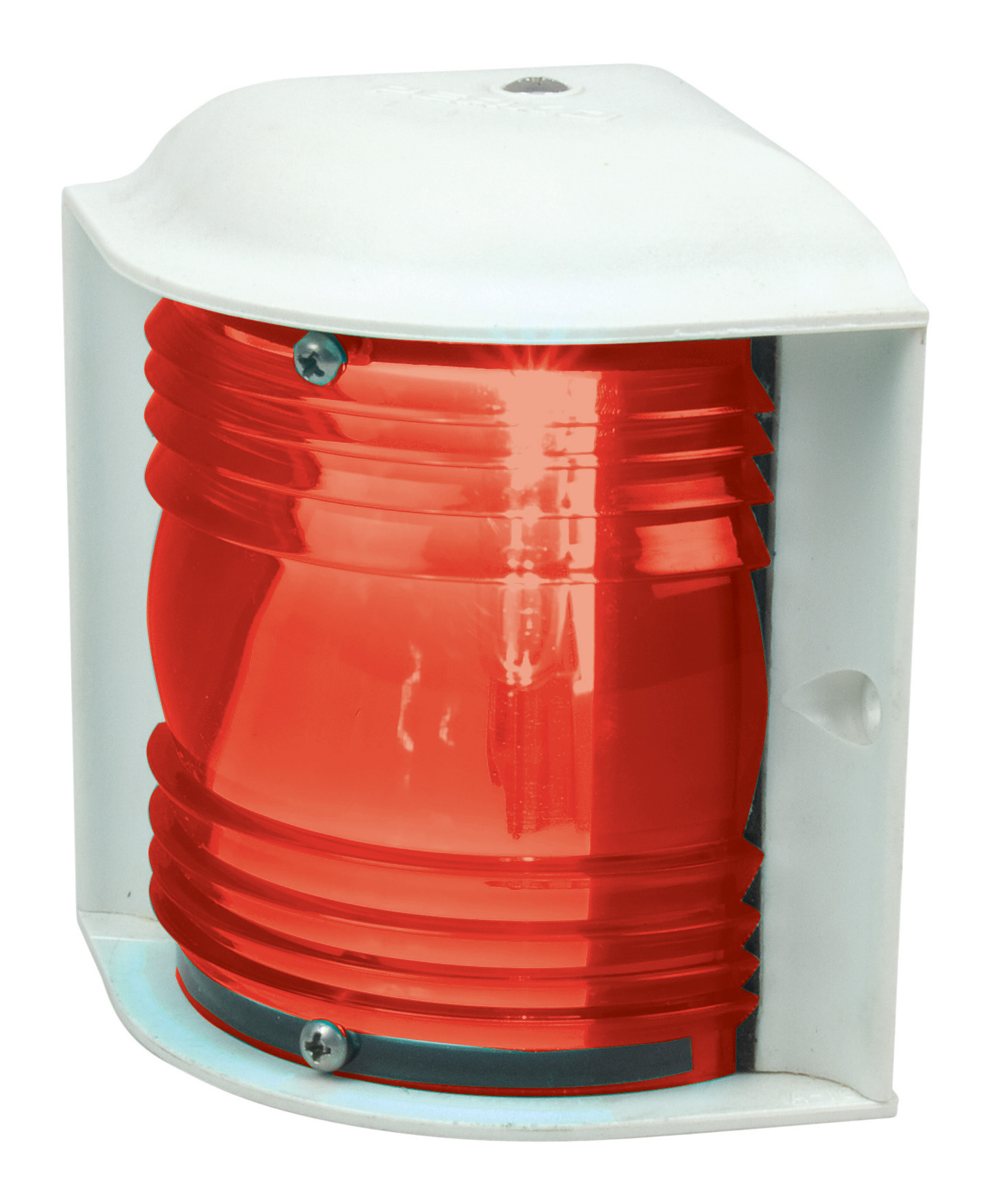

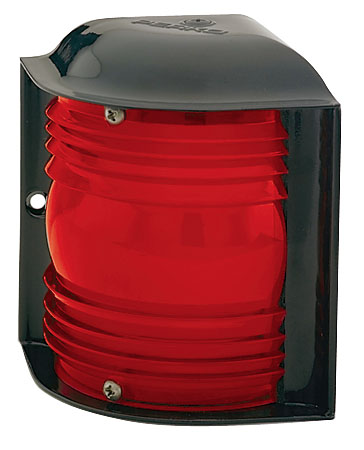

Red Side Light 0109R00BLK 0109R00WHT ( Legacy) 1.0

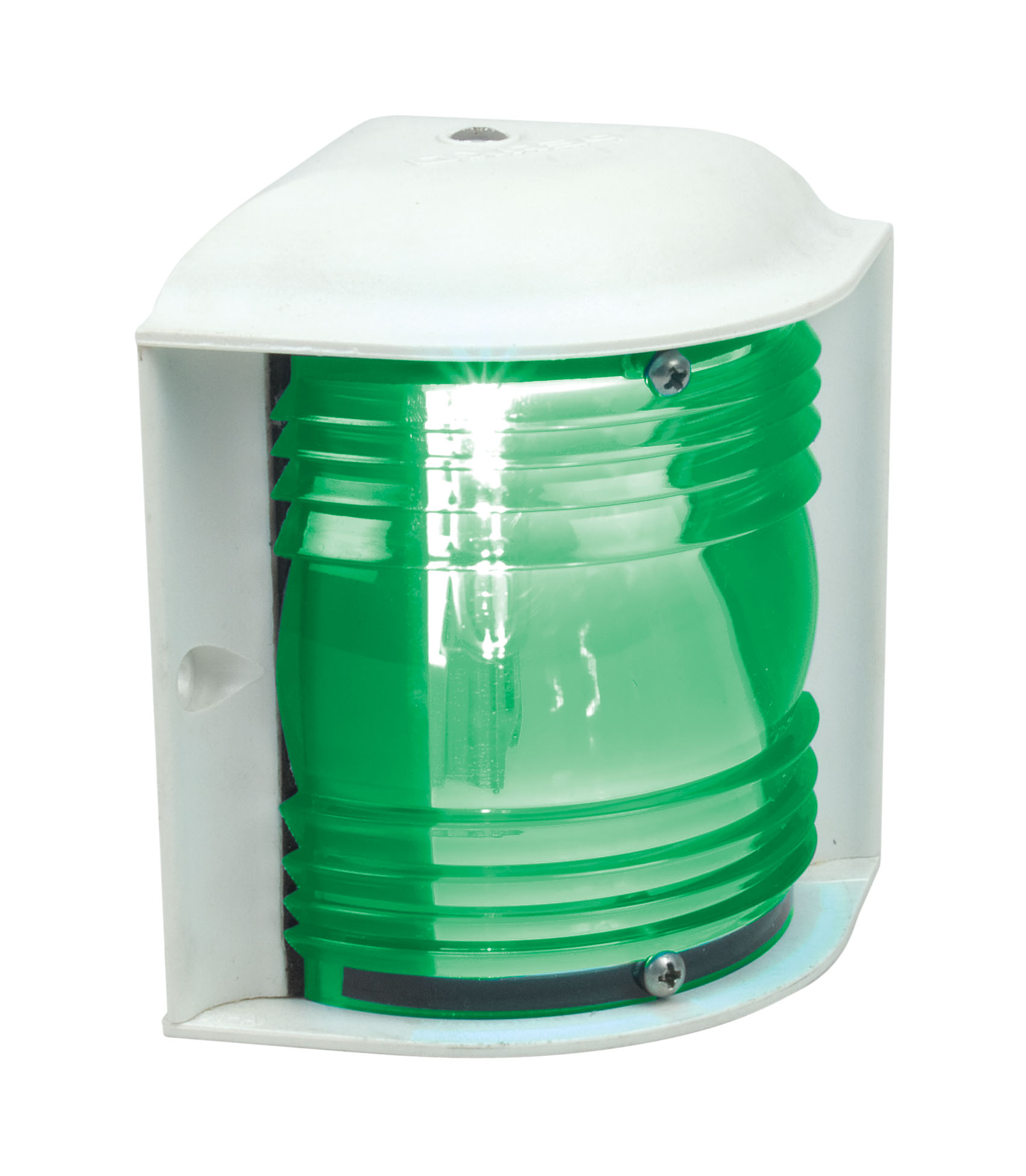

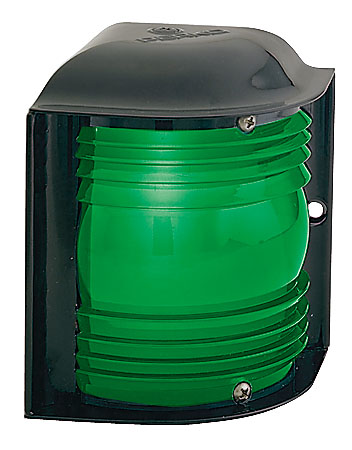

Green Side Light 0109G00BLK 0109G00WHT ( Legacy) 1.0

Note: Selected figure numbers of this product are a part of our Perko® Legacy product program.

Perko® Legacy products are no longer in regular production. Please contact our sales department for availability.

In the ordering information below, an anchor icon ( ) denotes a legacy figure number.
Spare Parts

Green Lens: 0259H02GRN

Red Lens: 0259H02RED

12 Volts (2 per Card): 0070DP1CLR

24 Volts (2 per Card): 0067DP2CLR
