Fold Down White All-Round Light

Certified For Use on Power Driven Vessels Under 20 Meters (65.6 ft.) in Length

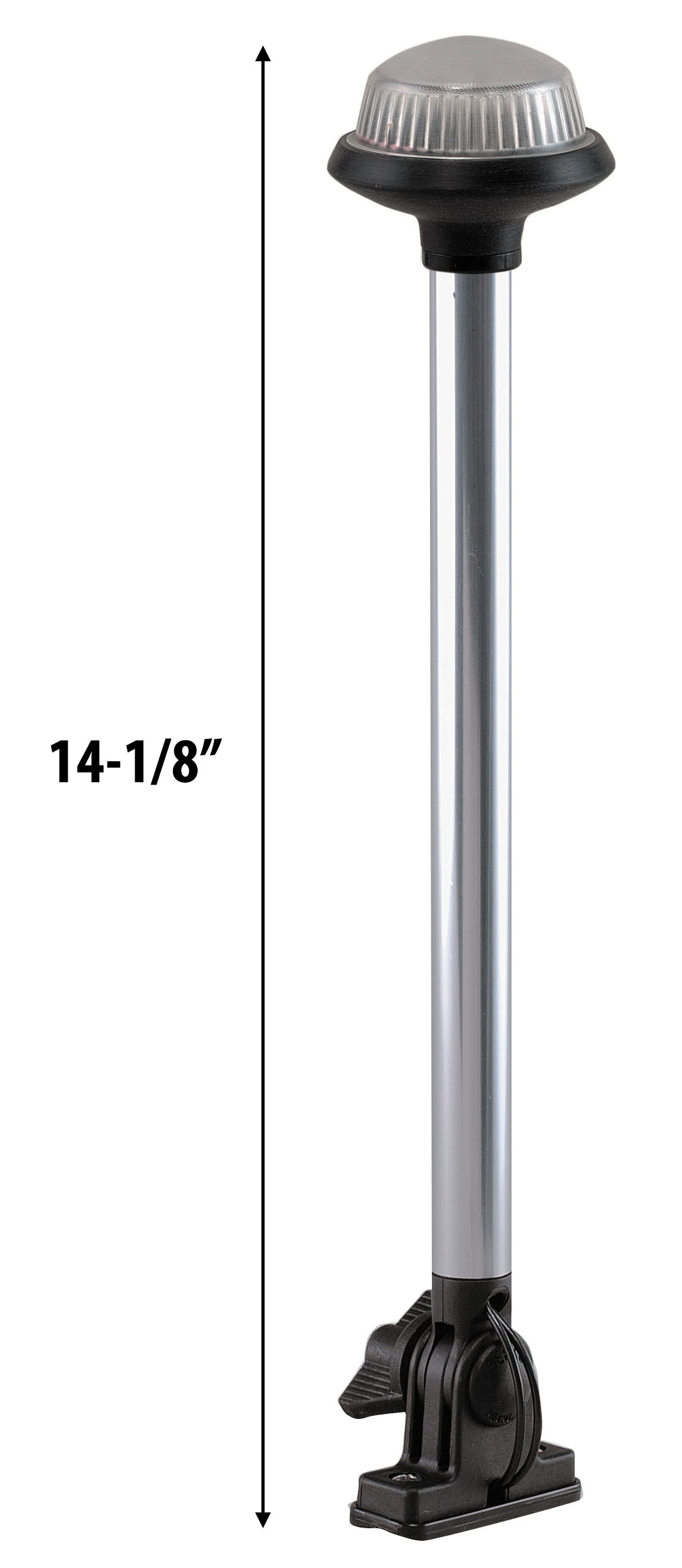

Figure No. 1637 - Fold Down White All-Round Light
Figure No. 1637 - Fold Down White All-Round Light Dimensions
Product Description
    • For Use on Windshields, T-Tops, Rails, Arches and Hard Tops
    • Vertical Mount
    • 360° Reduced Glare Design
    • Black Polymer Top with Clear Fluted Lens & Frosted Globe
    • Black Polymer Base
    • Polymer Adapter Available for Flat or "V" Type Mounts, Contains Notch for Through-Base Wiring
    • Fold-Down, Adjustable Angle
    • 2-Mile (USCG 2nm) Certified
Technical Information
  • Voltage: 12 Volt (Bulb Included)
  • Wattage: 9 watts
  • Amperage: .69 amps
  • Dimensions: 2-1/4" x 5/8"
  • Center to Center Base Dimensions: 1-5/8"
  • Pole: 3/4" Diameter Anodized
  • Screw Size: #8
Vertical Mount

Folds down 90° in either direction along the plane of attachment plate of the mount.

Ordering Information
Height Inches
14-1/8
Dealer Pkg. 5 Cards 1 Pc. per Card1637DP0CHR
OEM Bulk Pkg. 50 Pcs.1637000CHR
Ship Wt. Carton Lbs. DP/OEM Bulk 3.2/20.5
Height Inches Dealer Pkg. 5 Cards 1 Pc. per Card OEM Bulk Pkg. 50 Pcs. Ship Wt. Carton Lbs. DP/OEM Bulk
14-1/8 1637DP0CHR 1637000CHR 3.2/20.5
Spare Parts

Bulbs (2 per card): 0338DP2CLR

Black/Clear Globe: 0239DP0BLK

Old Style Zinc Spare Bracket with Knob and End Plug: 1052DP0CHR

New Style Polymer Spare Bracket with Knob and End Plug: 1052DPBBLK

Replacement Base - Vertical Mount with Quick Release: 1058DP0CHR

Knob for Old Style Bases: 1144A00BLK
