Vertical Mount Side Lights

Certified For Use on Power Driven Vessels Under 20 Meters (65.6 ft.) in Length

Available Finishes

Product Description

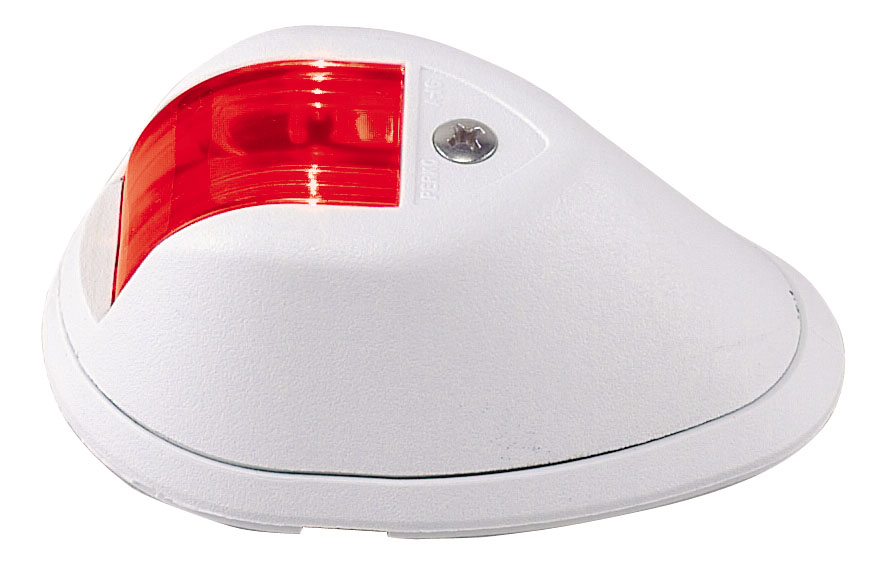

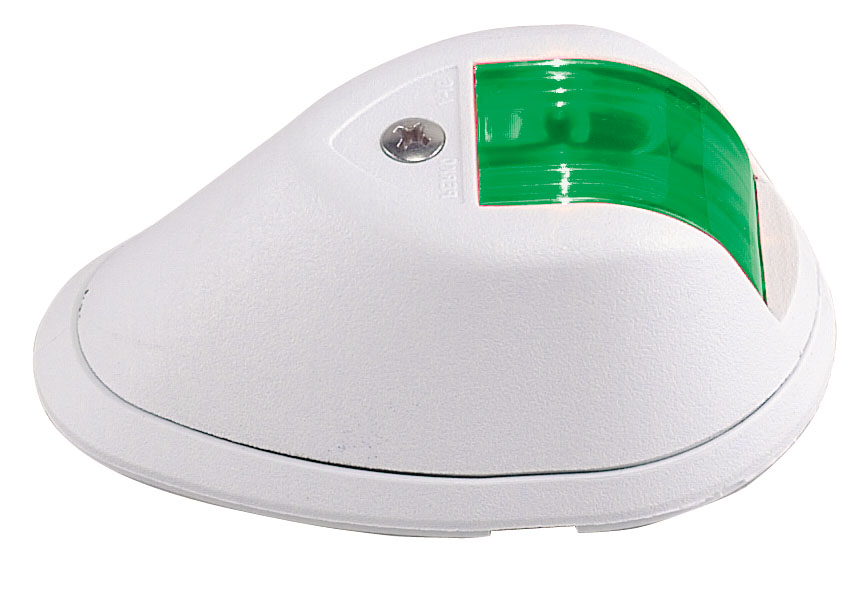

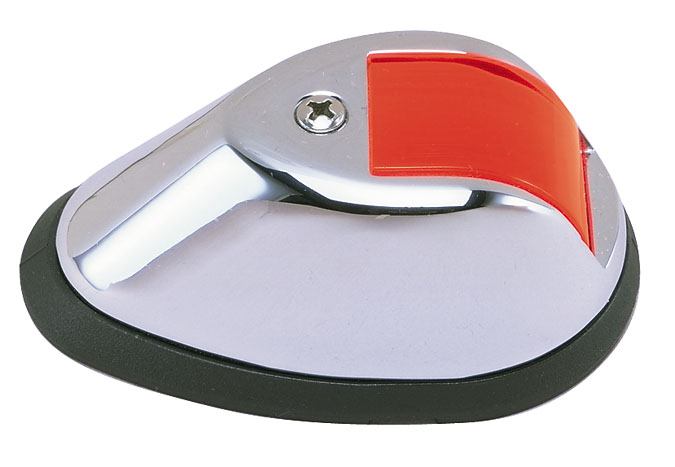

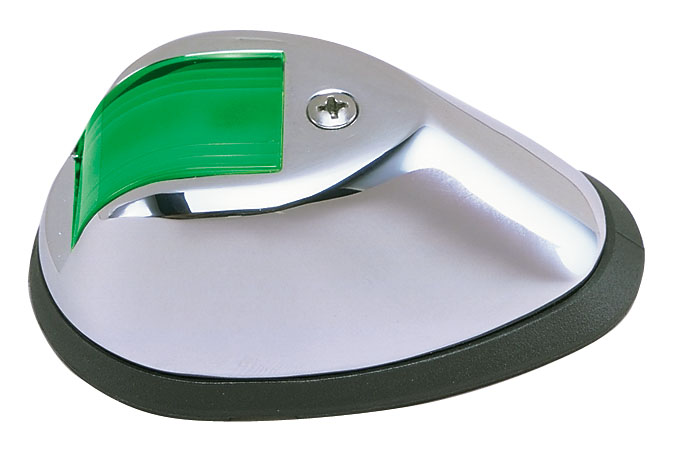

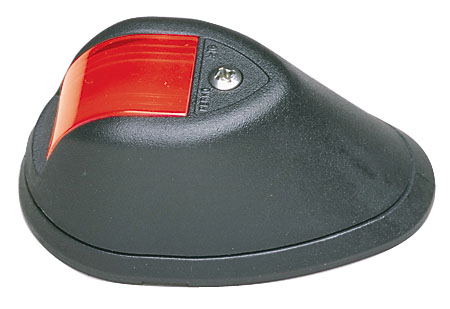

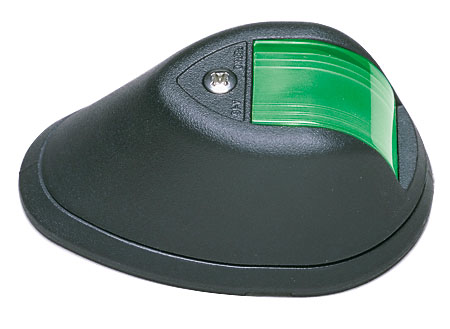

Chrome Plated Bronze, All Black Polymer or All White Polymer Finish
Black Polymer Base (Chrome Finish Only)
Red and Green Lenses
Gold Plated Contacts
2 Mile (USCG 2nm) Certified

Technical Information

Voltage: 12 Volt (Bulb Included)
Wattage: 8 watts (each light)
Amperage: .70 amps (each light)
Projection: 1-3/8"
Length: 3-1/2"
Width: 2-1/4"
Height: 1-5/8"
Screw Size: #8

Ordering Information

Finish	Dealer Pkg. 5 Cards 1 Pair per Card	OEM Bulk Pkg. 10 Pairs	Ship Wt. Carton Lbs. DP/OEM Bulk
Chrome	0254M00DP1	0254M0012V	3.2/5.4
Black	0254B00DP1	0254B0012V	2.4/3.6
White	0254W00DP1	0254W0012V	2.4/3.6

Instructions & Resources

Installation Instructions

UKCA Certificate

CE Certificate

View 0254 in our Print Catalog

Product Notes

NOTE: Fig. 0254 meets the USCG requirements for 12-volt applications. It can also be used as 24-volt A.B.Y.C. A-16 certified light on boats built prior to 11/1/03. To use as 24-volt light while maintaining A-16 certification, replace the bulbs with Cat. No. 0072DP8CLR 24-volt bulbs. Contact us for 24 volt applications on new construction.
