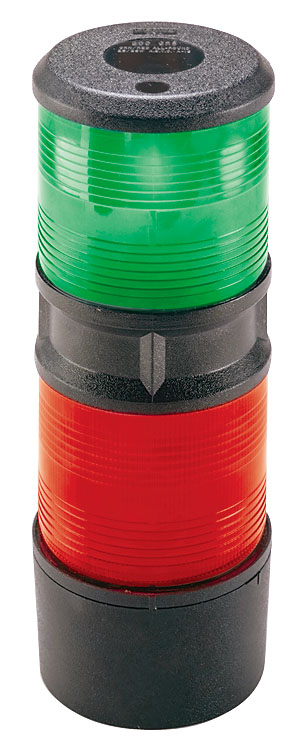

Green/Red All-Round Navigation Light

Certified For Use on Sail or Power Driven Vessels Under 20 Meters (65.6 ft.) in Length

Product Description

Black or White Polymer
Red and Green Lenses
2-Mile (USCG 2nm) Certified

Technical Information

Voltage: 12 or 24 Volt (Bulb Included)
Wattage: Upper: 25 watts / Lower: 10 watts
Amperage: (25 watts) 12V: 2.08 amps / 24V: 1.04 amps
(10 watts) 12V: .83 amps / 24V: .42 amps
Screw Size: #10
Height Overall: 8-5/8"
Height Lens: 2-3/4"
O.D. Base Inches: 3-5/16"
Visibility Arc: 360°

Ordering Information

Description	Black Dealer Pkg. - 5 Cards 1 Pc. per Card	White Standard Pkg. - 1 Piece per Box (12 Volt Only)	Replacement Bulb	Ship Wt. Carton Lbs. D.P./Std. Pkg.
Green / Red All-Round Light	0200GRBDP1	0200GRBW01	037512V25W / 25W	6.0/1.5

Instructions & Resources

0200GRB Installation Instructions

0200GRB UKCA Certificate

0200GRB CE Certificate

View 0200GRB in our Print Catalog

Product Notes

Ordering Info - For 24V Lights	Ordering Info - For 32V Lights
For 24V Lights, Replace the "DP1" with "DP2". For the Replacement Bulb, Replace the "12V" with "24V" (e.g., 037524V25W).	For 32V Lights, Replace the "DP1" with "DP3". For the Replacement Bulb, Replace the "12V" with "34V" (e.g., 037532V25W).

Spare Parts

Lens Assembly Part Numbers are Determined by Replacing the last Three Digits of the Catalog Number with the Letters "LNS" (example: 0200BT0LNS, for a Bi-Color Top Mount Lens Assembly)

Replacement Bulb Sockets: (single and lower for double) Cat. No. 0093, (upper for double), Cat No. 0995.
