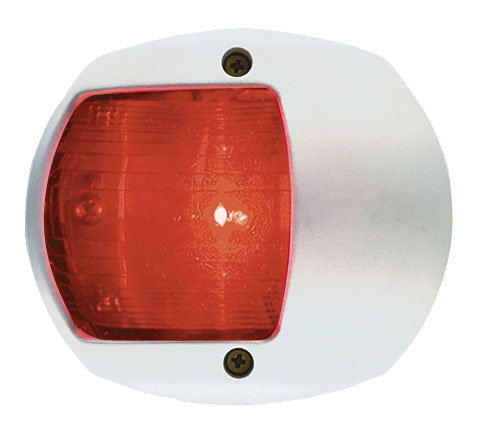

LED Red Side Navigation Light (White Polymer)

[Fig. No. 0170WP0]

Certified For Use on Sail or Power Driven Vessels Under 20 Meters (65.6 ft.) in Length

Product Description
    • All White Polymer
    • LED lenses are clear when the light is not illuminated
    • Uses Less than Half the Energy Draw of Standard Lights
    • Low Heat and Long Life
    • 2-Mile (USCG 2nm) Certified
Technical Information
  • Voltage: 12 Volt or 24 Volt LED
  • Wattage: 4.65 watts (12 Volt) / 2.52 watts (24 Volt)
  • Amperage: < 0.31 amps (12 Volt) / < 0.09 amps (24 Volt)
  • Screw Size: #10
  • Projection Overall: 2-1/4"

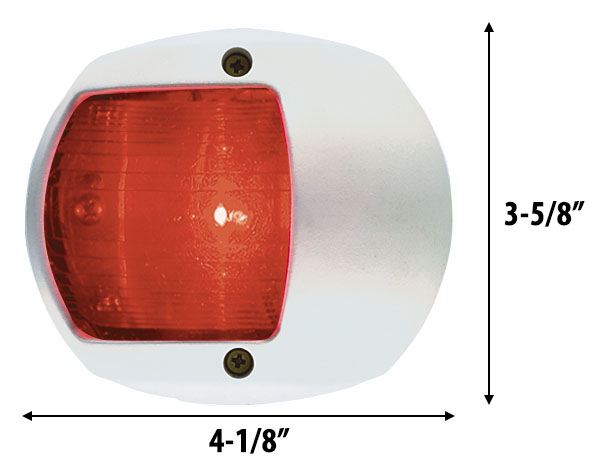

  • Height Overall: 3-5/8"
  • Width Overall: 4-1/8"
  • Visibility Arc: 112-1/2°
Ordering Information
12 Volt   24 Volt
Dealer Pkg. 1 Card 1 Pc. per Card Std. Pkg. 1 Pc. Ship Wt. Carton Lbs. DP / Std. Pkg. Dealer Pkg. 1 Card 1 Pc. per Card Std. Pkg. 1 Pc. Ship Wt. Carton Lbs. DP / Std. Pkg.
0170WP0DP3 0170WP012L 0.7/0.7 0170WP0DP4 0170WP024L 0.7/0.7
Product Notes

The old 12 volt 0120 Series lights are superseded by the 0170 Series
