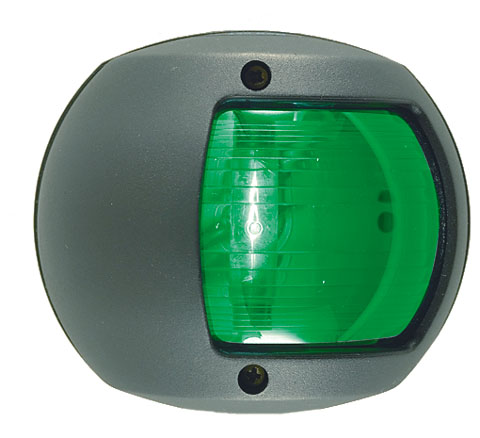

Green Navigation Side Light (Black Polymer)

Certified For Use on Sail or Power Driven Vessels Under 20 Meters (65.6 ft.) in Length

Product Description
    • All Black Polymer
    • Green Colored Lens
    • 2-Mile (USCG 2nm) Certified
Technical Information
  • Voltage: 12 Volt or 24 Volt (Bulb Included)
  • Wattage: 15 watts (12 Volt) / 18 watts (24 Volt)
  • Amperage: .97 amps (12 Volt) / .75 amps (24 Volt)
  • Screw Size: #10

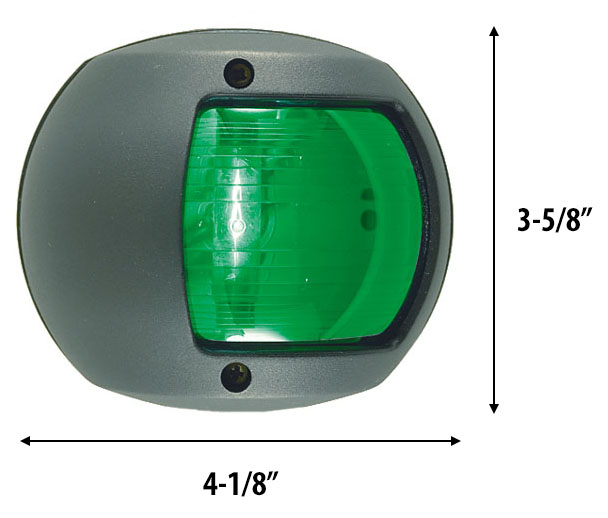

  • Projection Overall: 2-1/4"
  • Height Overall: 3-5/8"
  • Width: 4-1/8"
  • Visibility Arc: 112-1/2°
Ordering Information
12 Volt   24 Volt
Dealer Pkg. 5 Cards 1 Pc. per Card Std. Pkg. 1 Pc. Ship Wt. Carton Lbs. DP / Std. Pkg. Dealer Pkg. 5 Cards 1 Pc. per Card Std. Pkg. 1 Pc. Ship Wt. Carton Lbs. DP / Std. Pkg.
0170BSDDP1 0170BSD12V 2.3/0.5 0170BSDDP2 0170BSD24V 2.3/0.5
Product Notes

The old 12 volt 0120 Series lights are superseded by the 0170 Series

Spare Parts

Bulbs (12 Volt - 2 per card): 0070DP1CLR

Bulbs (24 Volt - 2 per card): 0067DP2CLR

Lens and Shield Assembly: 0170BSDLNS
