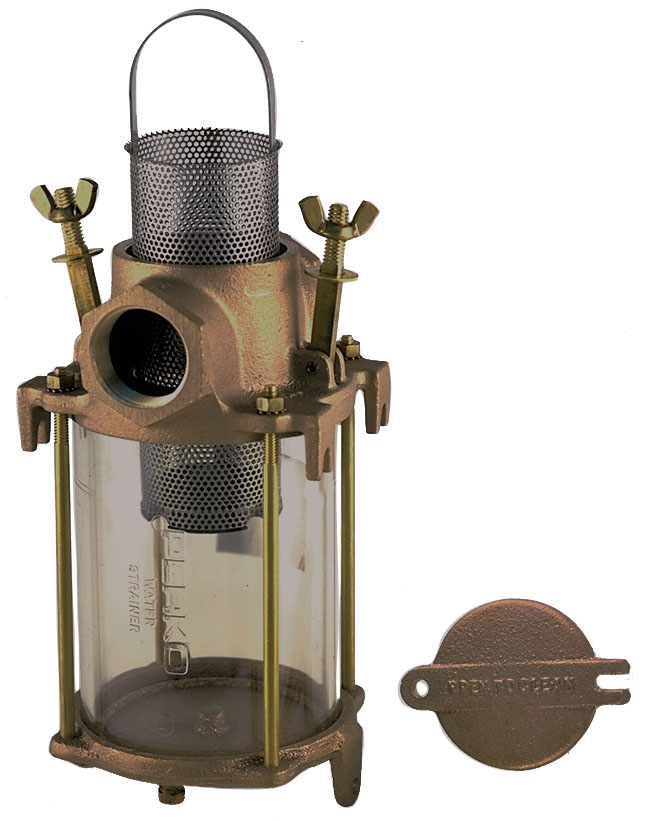

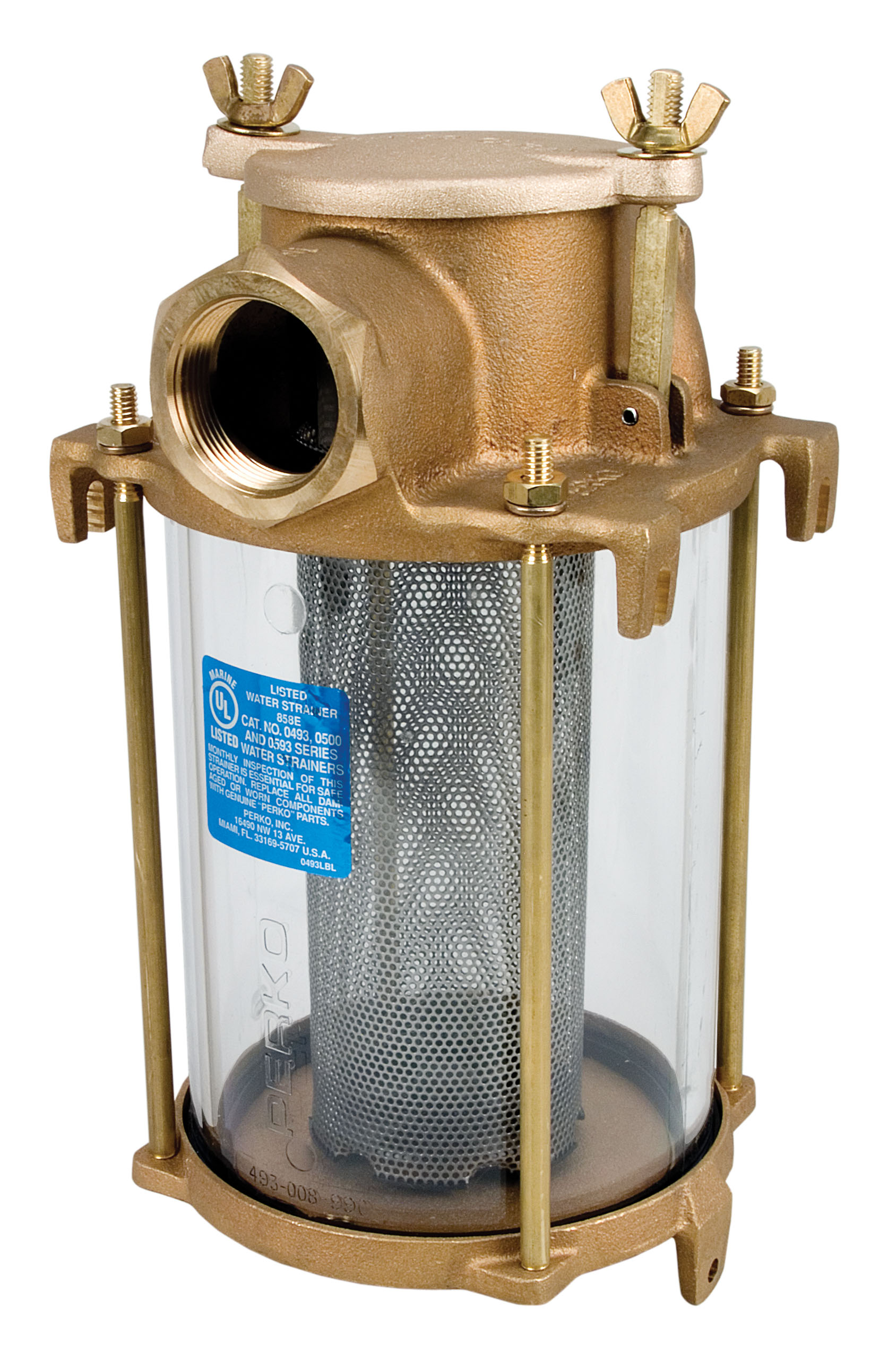

Intake Water Strainer[Fig. No. 0493]
- Cast Bronze
- Stainless Steel Basket
- Clear Polymer Cylinder
PERKO Intake Water Strainers are designed for easy installation and cleaning. Features include mounting lugs cast into both sides to assure universal mounting, four outside tie rods and a 316 stainless steel strainer basket to minimize electrolysis. Screen hole diameter .079 inches, 47% open area, among the highest in the industry for cylindrical strainer baskets.
Hinged lugs for the cast bronze cover permit easy removal and cleaning of the strainer basket.
A drain plug in the bottom casting is provided for easily removing sediment and draining for winterizing. For applications requiring higher capacity, use Fig. 0500.

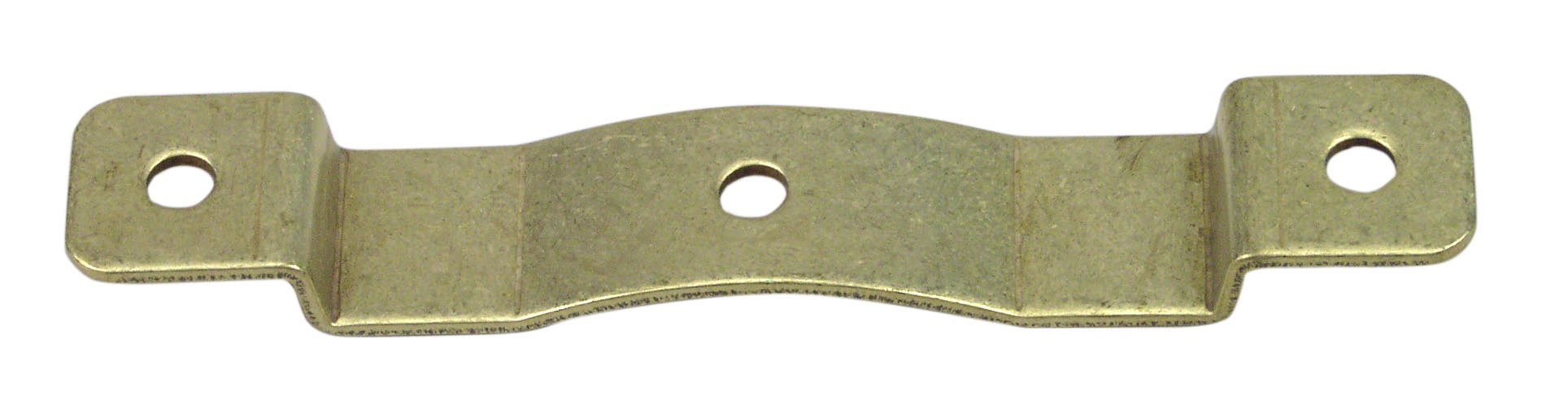

Optional Mounting Bracket
Designed for Ease of Installation of Fig. 0493 Series Water Strainers
4 & 5
6 & 7
8 & 9
