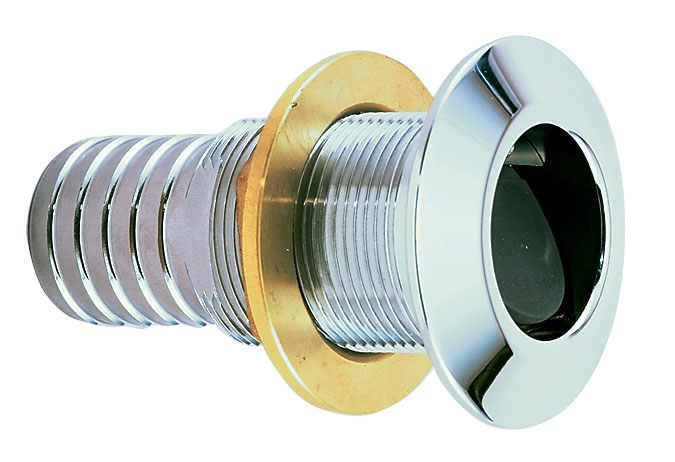

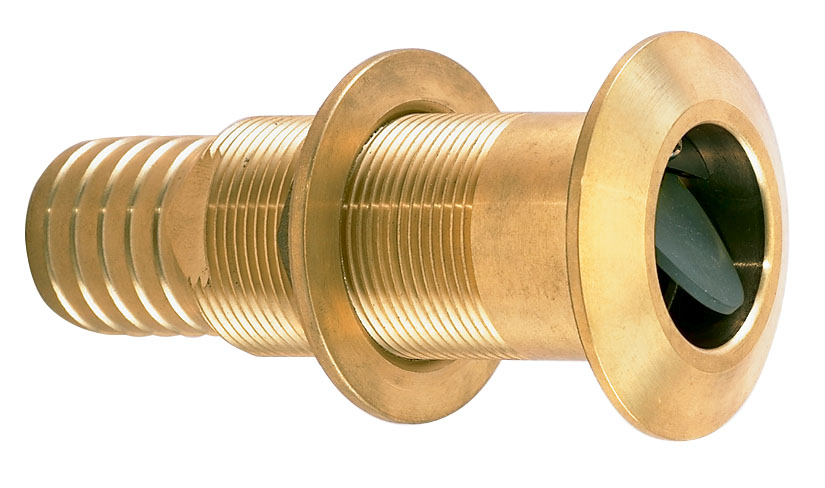

Thru-Hull Scupper for use with Hose

Available Finishes
Chrome Plated Bronze
Plain Bronze
Product Description
    • Cast Bronze
    • Plain or Chrome Plated
    • Recessed Flapper
    • "A" Style for thinner hull thickness
    • "B" Style for greater hull thickness
    • Flange is machined to fit hull and grooved to retain bedding compound
Technical Information
    See ordering information below
Ordering Information
Finish Hose Size Inches Mounting Hole Dia. Inches Max. Hull Thickness Inches O.D. Flange Inches OEM Bulk Pkg. 10 Pcs. Ship Wt. Carton Lbs. OEM Bulk
Chrome 1-1/2 1-7/8 1-3/4 3-1/8 0377A08CHR 16.1
Plain 1-1/2 1-7/8 1-3/4 3-1/8 0377A08PLB 16.4
Chrome 2 2-3/8 2 3-3/4 0377A09CHR 22.1
Chrome 1-1/2 1-7/8 3 3-1/8 0377B08CHR 19.4
Plain 1-1/2 1-7/8 3 3-1/8 0377B08PLB 19.4
Instructions & Resources
View in Print Catalog View 0377 in our Print Catalog
Product Notes
NOTE: Thru-Hull Connections For Use With Hose Are Not Recommended For Use Below The Waterline Per A.B.Y.C. "Safety Standards For Small Craft" Section H-27.
Spare Parts

Flanged Nut: 0075 (see table below for full part numbers)

Spare Flapper: 0333DP099A

Figure No. 0075 Spare Flanged Nut Sizes

Pipe Size Cast Bronze Retail Package
3/8" 0075003DPP
1/2" 0075004DPP
3/4" 0075005DPP
1" 0075006DPP
1-1/4" 0075007DPP
1-1/2" 0075008DPP
2" 0075009DPP
2-1/2" 0075010DPP
3" 0075011DPP
